has the ability to simultaneously position the cutter in space. This is achieved by controlling the A-axis and the C-axis simultaneously.
By combining the movements of the two axes, the Fork Milling head can position the cutter in any desired position in space, allowing for complex and precise cuts to be made on the workpiece.
This type of cutter is particularly suitable for the production of complex tools and shapes where high precision and flexibility is required.

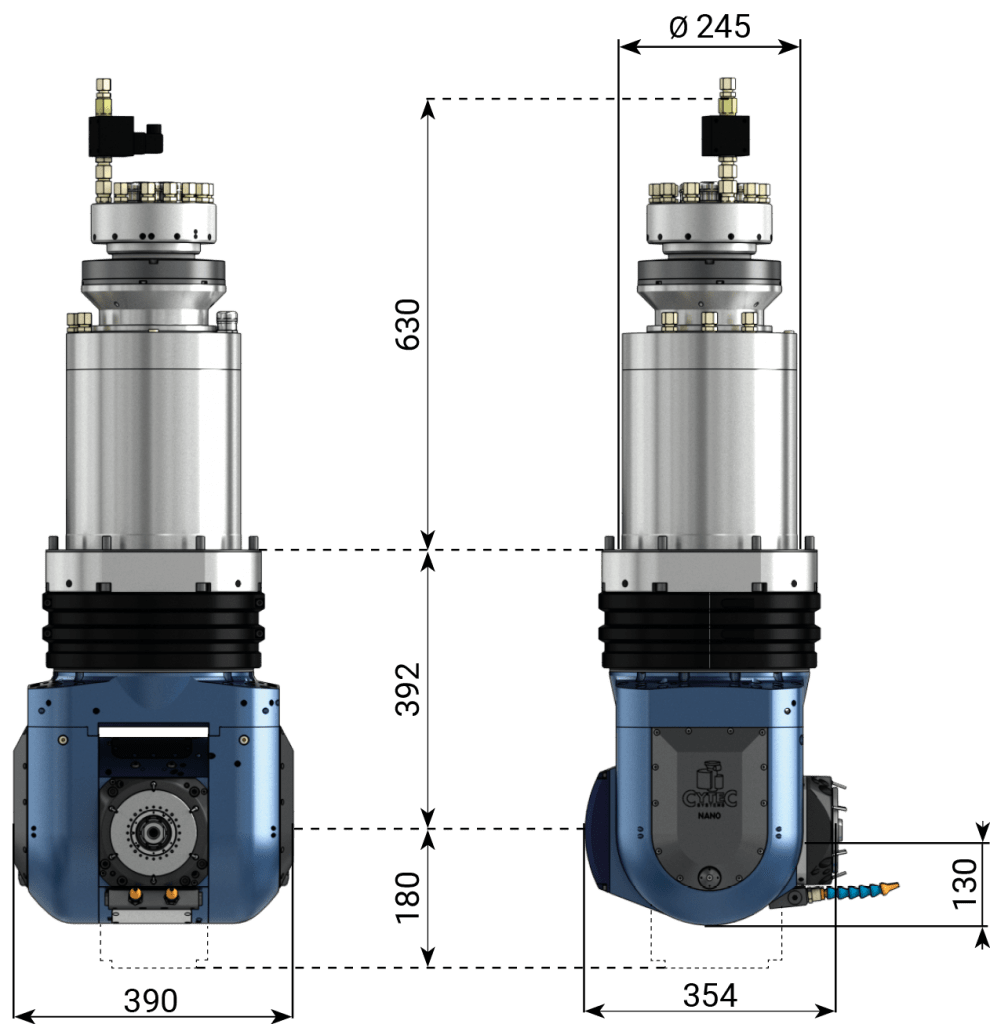

CYTEC NANO-Series Milling Heads
Ultra-compact 2-axis fork head with ±115°/±360° motion, ±4″/±2″ positioning accuracy, and 1,000/2,500 Nm hydraulic clamping – ideal for high-precision 5-axis machining in tight spaces and lightweight setups.

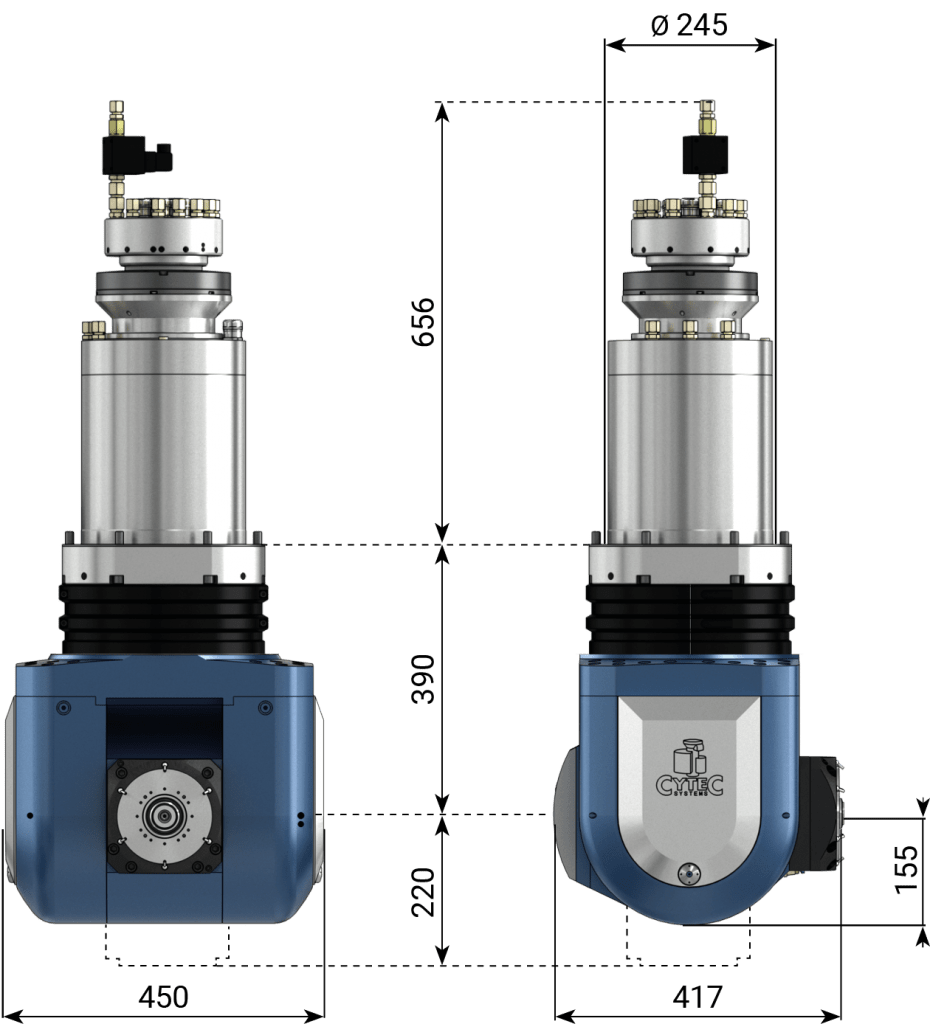

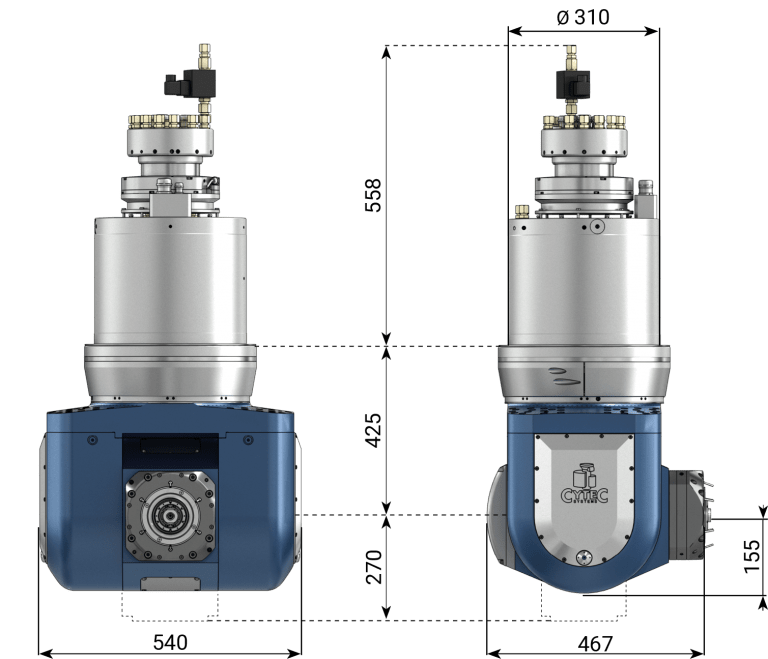

CYTEC S-Series HD Milling Head
Heavy-duty 2-axis fork head with ±110°/±360° motion, ±4″/±2″ accuracy, and massive 3,000 Nm clamping torque – designed for high-performance 5-axis metal machining under extreme loads. With UHT DirectDrive motors delivering up to 1,410 Nm (A-axis) and 1,410 Nm (C-axis)

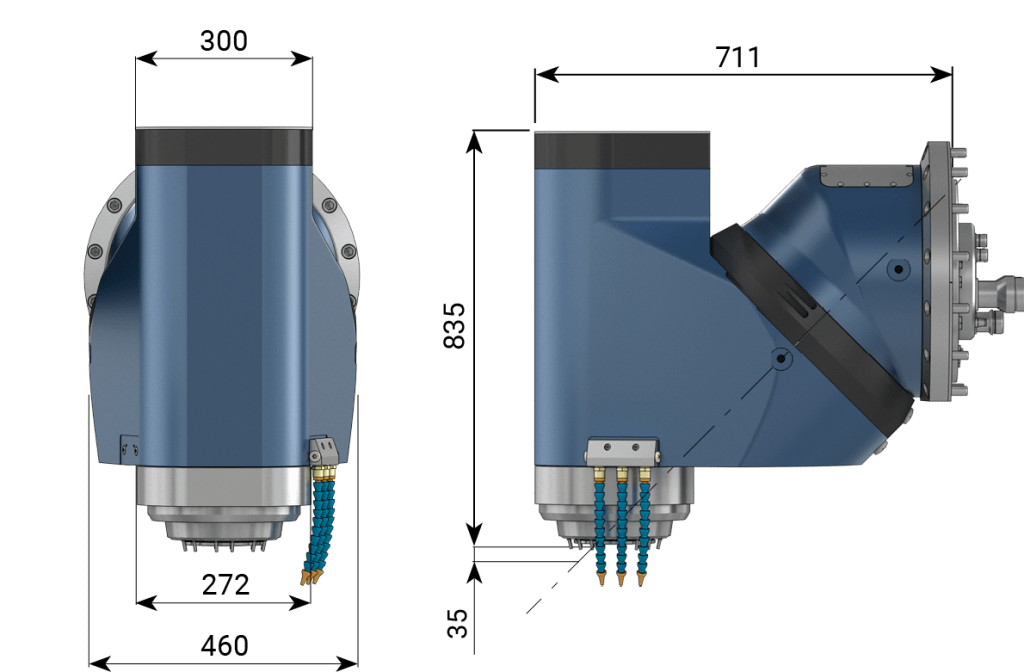

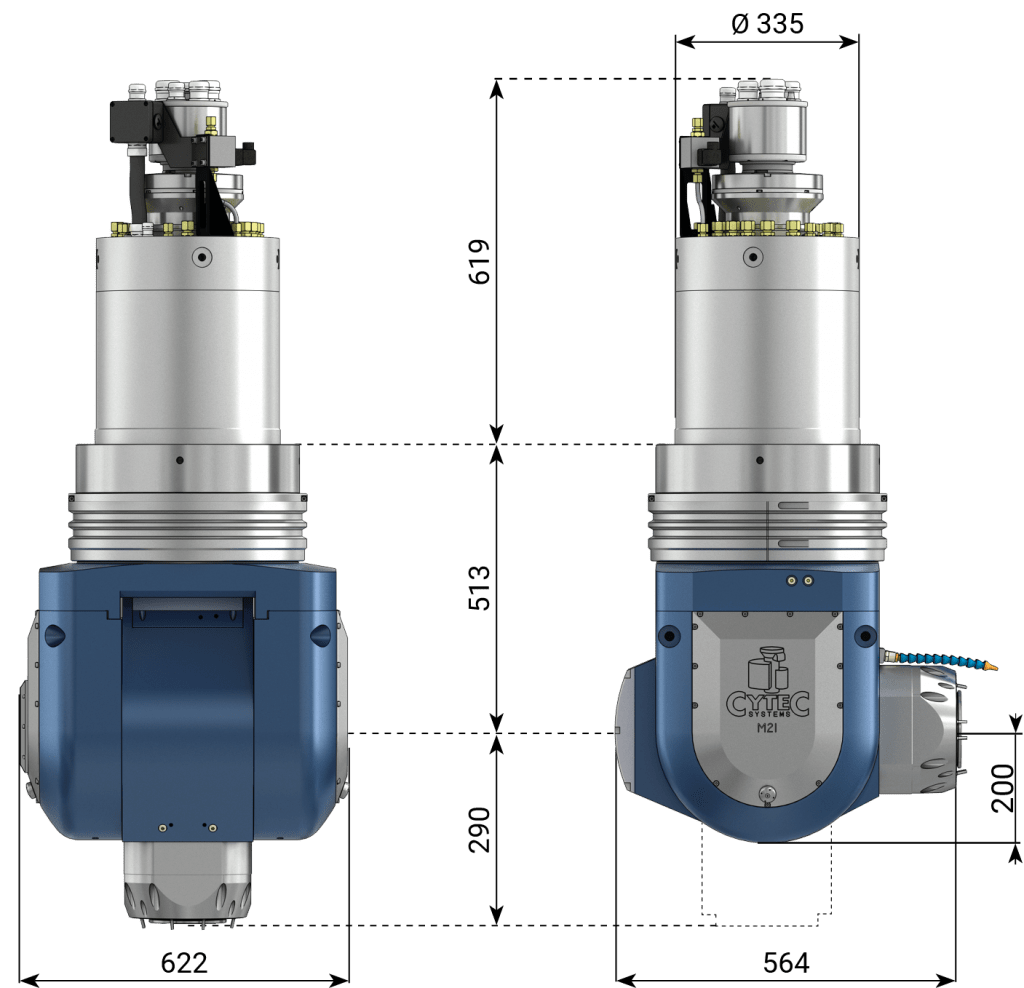

CYTEC M-Series HD Milling Heads
Robust heavy-duty fork head with 110°/360° motion, ±5″/±2″ accuracy, 4000/5000 Nm clamping – perfect for demanding roughing and finishing in aerospace and heavy industries.

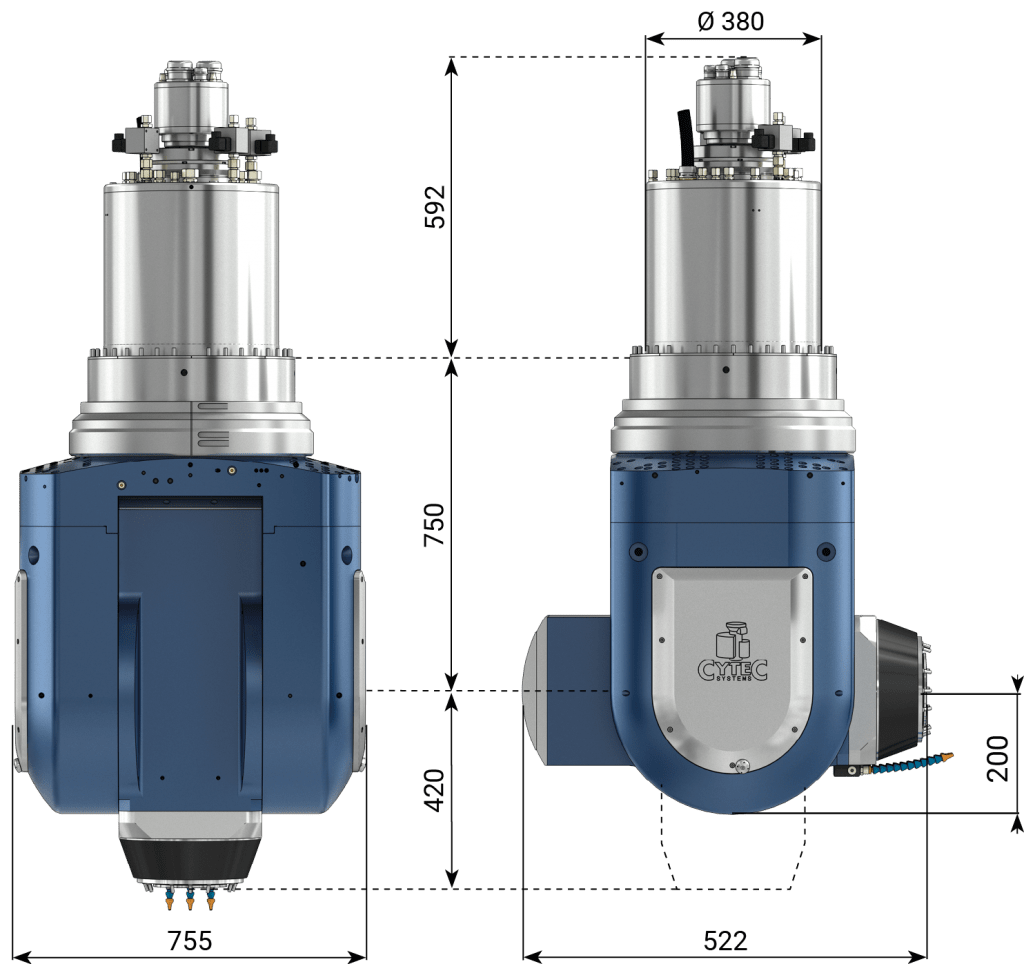

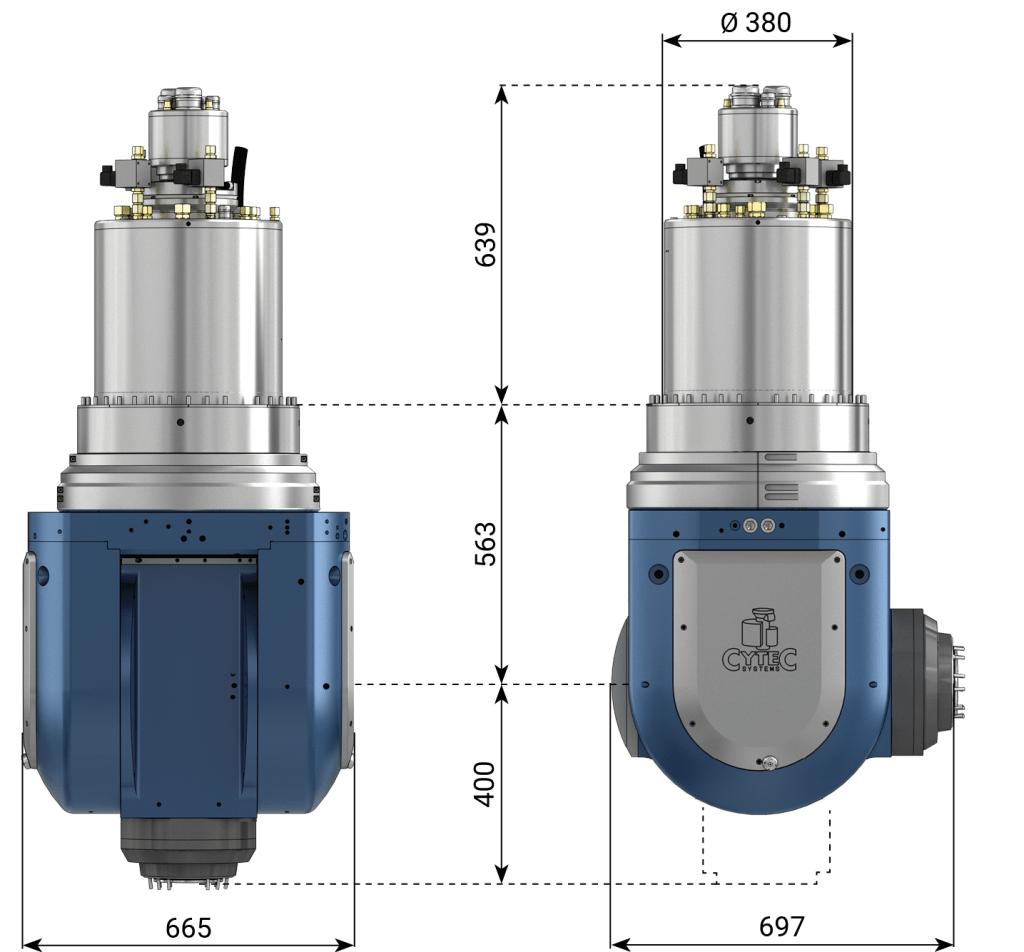

CYTEC G-Series HD Milling Heads
Ultra-rigid heavy-duty head with 110°/360° motion, ±2.5″/±2″ accuracy, 7500/7500 Nm clamping torque – engineered for maximum torque and precision in large-part machining and tough materials.

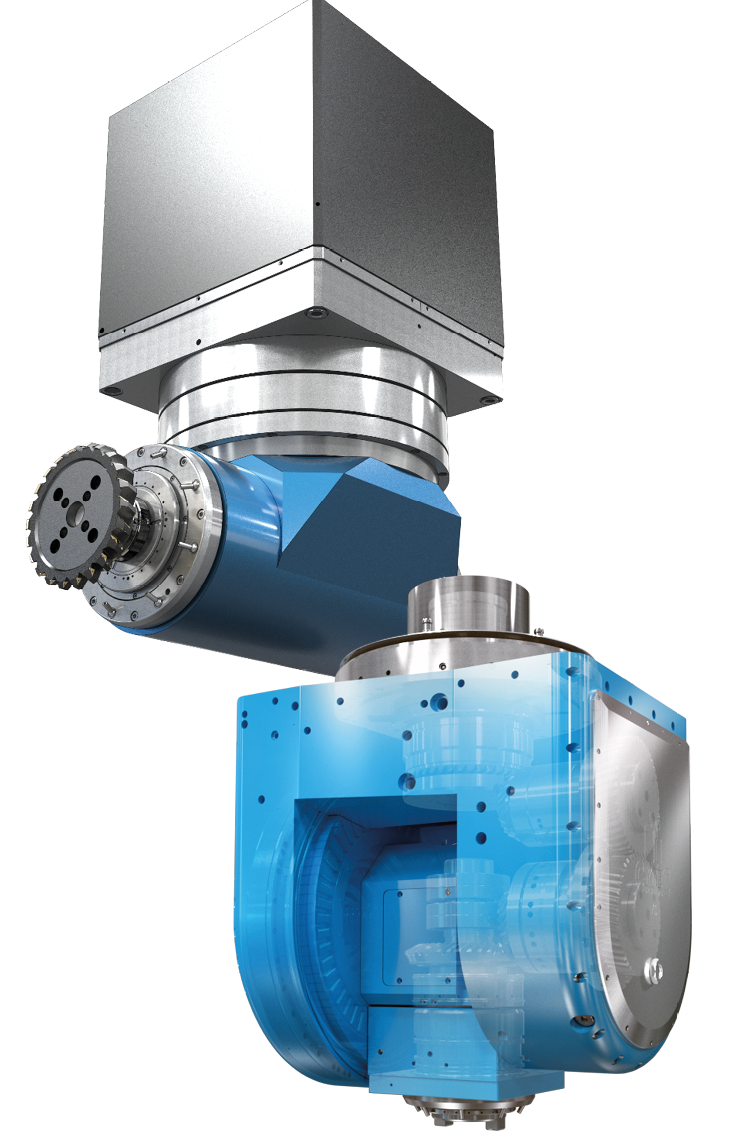

CYTEC HD-Series HD Milling Heads
CYTEC HD machining heads offer maximum rigidity and torque up to 2,600 Nm for demanding applications. With innovative direct drives, powerful axis clamping, and in-house spindle development, CYTEC ensures precision, reliability, and dynamic performance – “Strongest of its kind.”

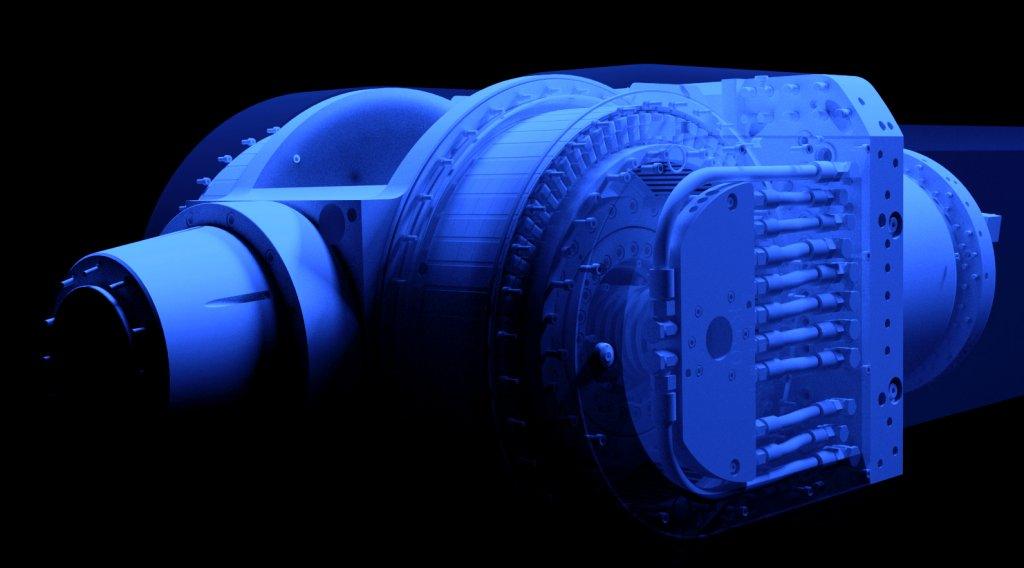

CYTEC K-Series HD Milling Heads
Compact milling head with high torque, Nom./Max. torque: 2.380/ 4.400 Nm
Nom./Max. torque:3.405 /5.770 Nm (UHT)
Clamping torque: 6.500 Nm
Swivel angle: -135° / +55°
Measuring system: absolute
Position accuracy: ±2”
The universal milling head allows for precise machining of workpieces due to its compact design and ability to reach both the lowest horizontal and highest vertical machining space. It is ideal for horizontal machine tools in combination with rotary table system. It offers the best power density on the market. It uses a high torque mechanical transmission spindle which can handle even hard to cut materials.

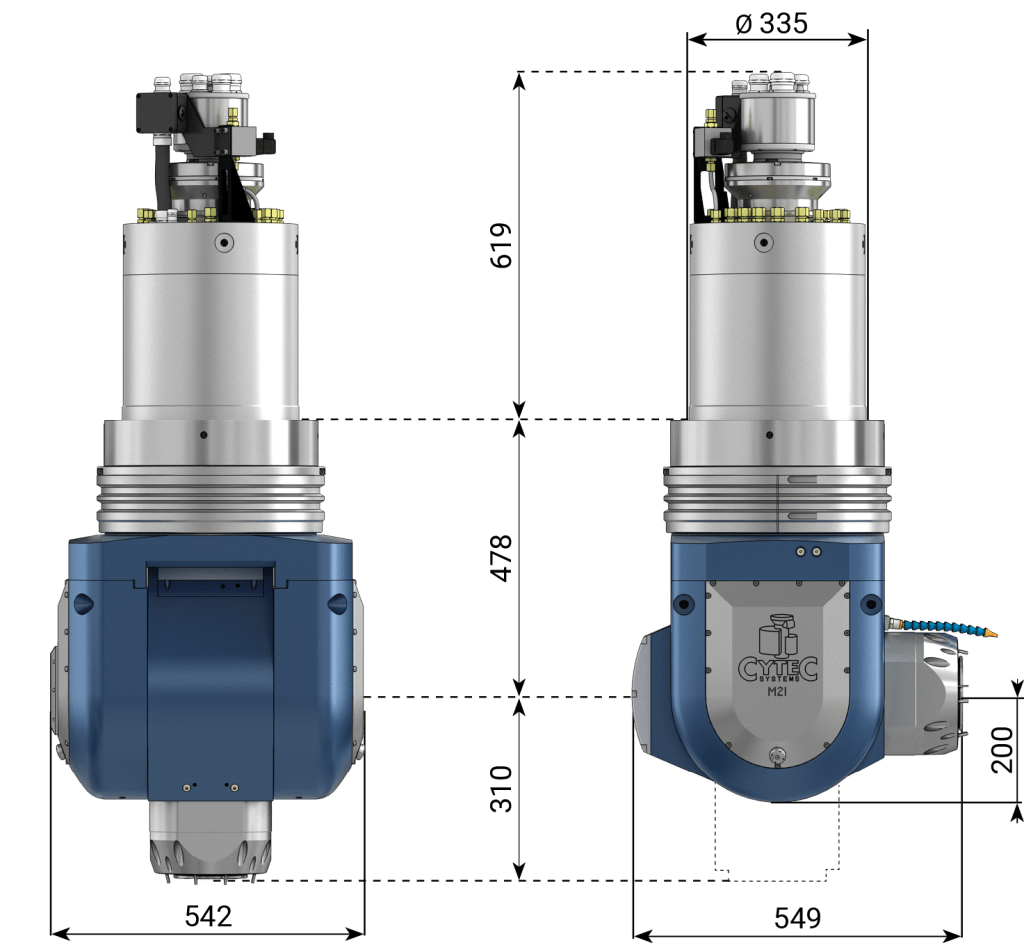

CYTEC M-Series Milling Heads
Compact milling head with high torque, hydraulic clamping, ±180°/±360° rotation, 2″ accuracy, for dynamic 5-axis machining in tight spaces.

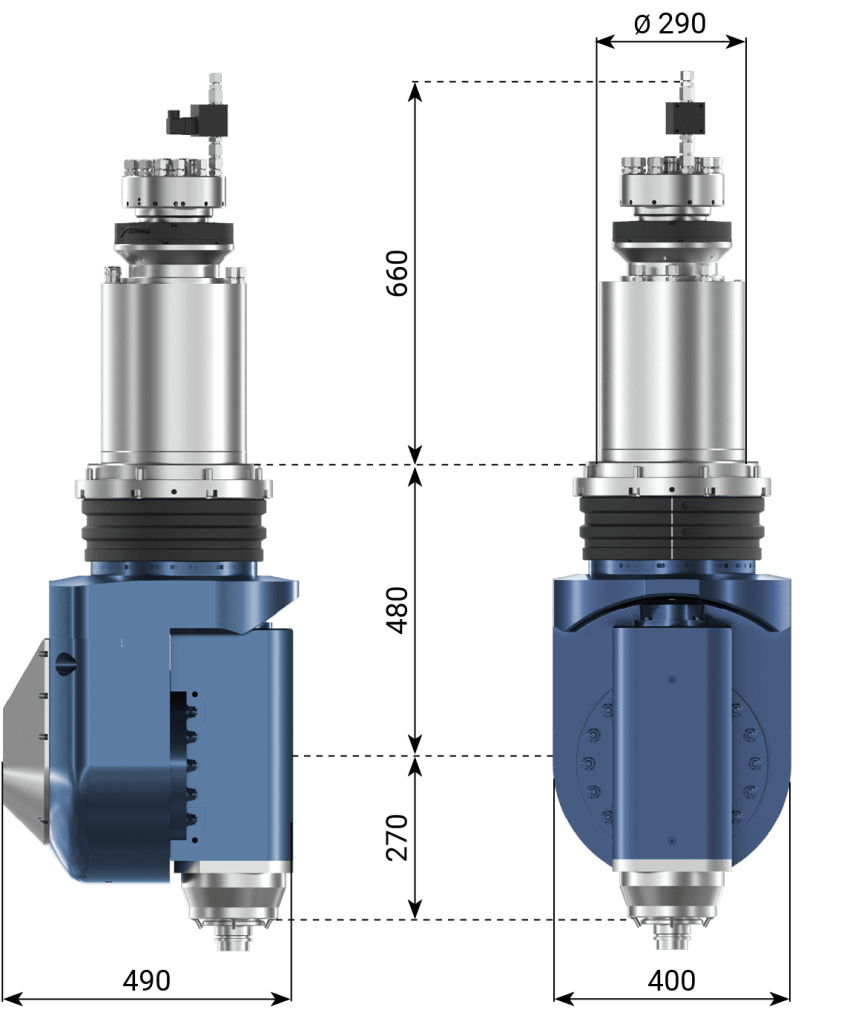

CYTEC P-Series Milling Heads
Compact milling head with high torque, hydraulic clamping, ±190° rotation, 2″ accuracy, for dynamic 5-axis machining in tight spaces

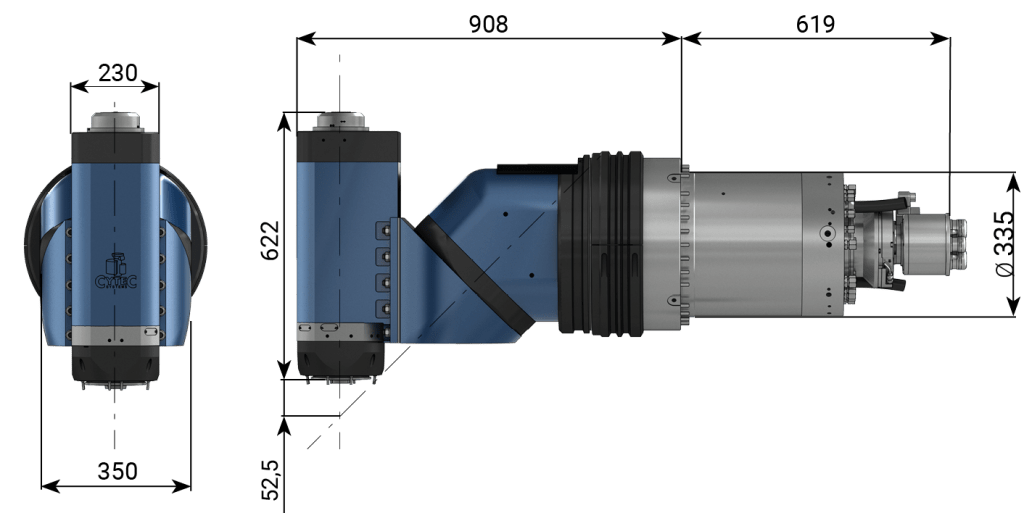

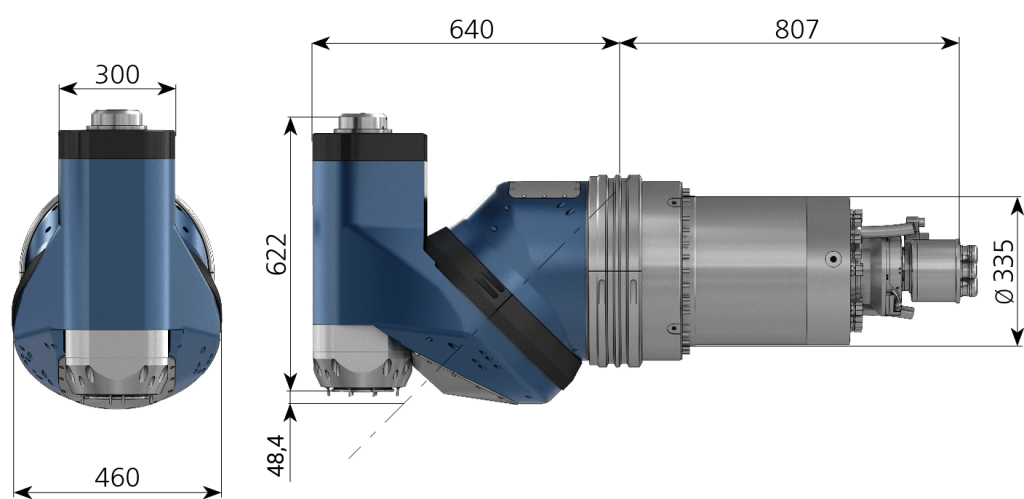

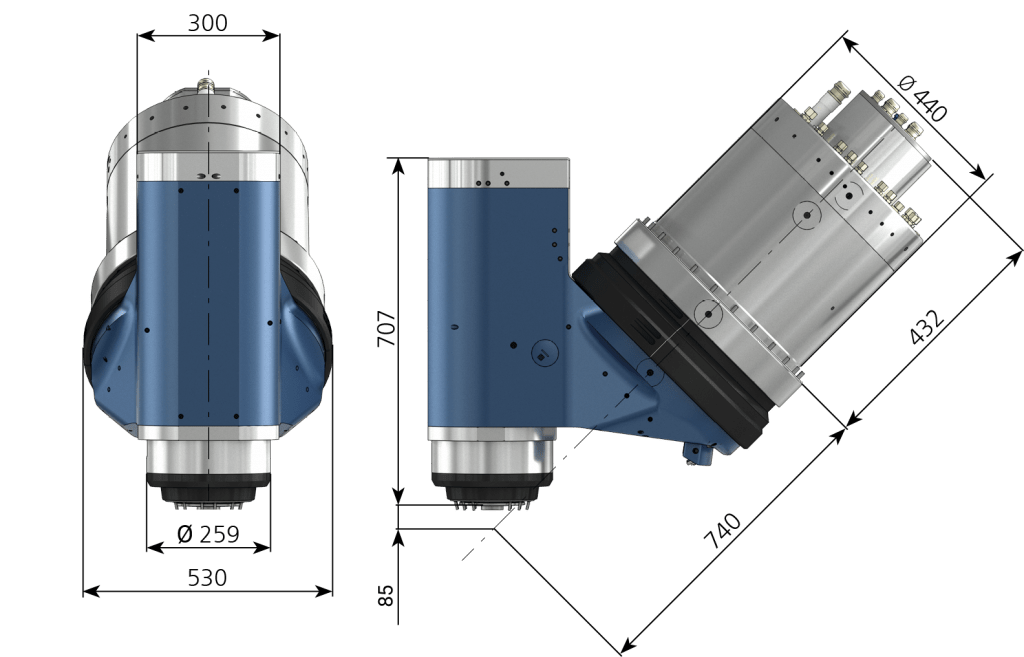

CYTEC M-SERIES 2X45°
Compact milling head with high torque, hydraulic clamping, ±190°/±360° rotation, 2″ accuracy, for dynamic 5-axis machining in tight spaces.
CYTEC P-Series Milling Heads
Compact milling head with high torque, hydraulic clamping, ±190°/±360° rotation, 2″ accuracy, for dynamic 5-axis machining in tight spaces
CYTEC P-Series Milling Heads
Compact milling head with high torque, hydraulic clamping, ±180° rotation, 2″ accuracy, for dynamic 5-axis machining in tight spaces.
