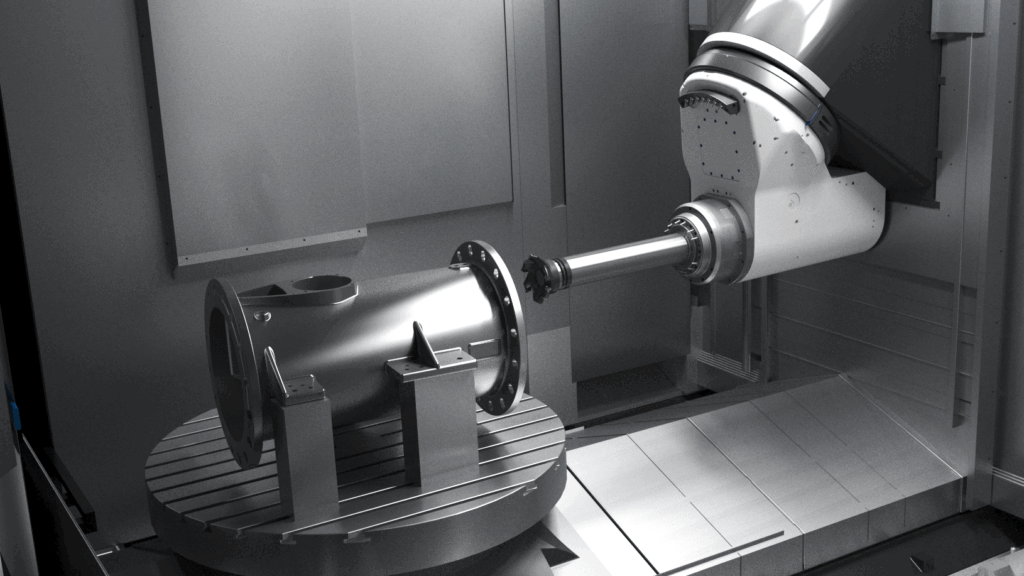

The large universal milling head: power density for large-part 5-axis machining. Based on the G-Series drive technology, the G-Series 45° brings up to 4,300 Nm (UHT) to the ±180° swivel axis – ideal for horizontal machine tools in combination with rotary table systems.
With 5,500 Nm hydraulic clamping, ±2″ position accuracy and the CYSPEED Ø238 spindle family up to 70 kW, hard-to-cut materials are handled with ease.
| Nom./max. torque | 1,830 / 3,550 Nm |
| UHT nom./max. torque | 2,605 / 4,300 Nm |
| Clamping torque | 5,500 Nm |
| Swivel angle | ±180° |
| Position accuracy | ±2″ |
| Power range | 42 – 70 kW (S1) |
| Max. torque | 525 Nm (CS-42-238-S) |
| Max. speed | 22,000 rpm (CS-70-238-S) |
| Tool interfaces | HSK-A63 / A100 / SK50 |
| Type | Large universal head, 45° |
| Measuring system | absolute |
| Total weight | approx. 870 kg |
| Ideal for | Large-part 5-axis machining |
The G-Series 45° is driven by CYSPEED motor spindles of the Ø238 mm family. Click a spindle to view its datasheet and performance diagram:
| Power (S1/S6) | 42 / 55 kW |
| Torque (S1/S6) | 400 / 525 Nm |
| Nom. / max. speed | 1,000 / 7,000 rpm |
| Tool interface | HSK-A100 / SK50/C8 |
| Power (S1/S6) | 50 / 63 kW |
| Torque (S1/S6) | 248 / 315 Nm |
| Nom. / max. speed | 2,000 / 15,000 rpm |
| Tool interface | HSK-A100 |
| Power (S1/S6) | 70 / 90 kW |
| Torque (S1/S6) | 85 / 105 Nm |
| Nom. / max. speed | 8,000 / 22,000 rpm |
| Tool interface | HSK-A63 |
The universal milling head allows precise machining of workpieces thanks to its compact design and its ability to reach both the lowest horizontal and the highest vertical machining space. It is ideal for horizontal machine tools in combination with a rotary table system and offers the best power density on the market. A high-torque mechanical transmission spindle handles even hard-to-cut materials.
