G - SERIES

PDF

The G-Series by CYTEC delivers unmatched power density and performance in a compact package. With up to ~3.500 Nm torque, ±2″ accuracy, and support for large (up to 115 kW) spindles, it’s designed for high-demand tasks in aerospace, automotive, and heavy engineering. Available accessories enhance cleanliness, rigidity, and flexibility.

G30 123
10006
CYTEC Spindle Overview

CYTEC Spindle Selector

Power (S1/S6):13 / 18 kW
Torque (S1/S6):20 / 28 Nm
Max. Speed:24,000 rpm
Tool Interface:HSK-A63
Length:n/a
CS-13-135-A Diagram
Power (S1/S6):18 / 23 kW
Torque (S1/S6):56 / 72 Nm
Max. Speed:18,000 rpm
Tool Interface:HSK-A63
Length:415 mm
CS-18-135-S Diagram
Power (S1/S6):20 / 26 kW
Torque (S1/S6):33 / 42 Nm
Max. Speed:20,000 rpm
Tool Interface:HSK-A63
Length:n/a
CS-20-135-A Diagram
Power (S1/S6):21 / 27 kW
Torque (S1/S6):100 / 130 Nm
Max. Speed:18,000 rpm
Tool Interface:HSK-A63
Length:546 mm
CS-21-180-A Diagram
Power (S1/S6):25 / 42 kW
Torque (S1/S6):87 / 145 Nm
Max. Speed:20,000 rpm
Tool Interface:HSK-A63
Length:n/a
CS-25-180-A Diagram
Power (S1/S6):26 / 34 kW
Torque (S1/S6):31 / 40 Nm
Max. Speed:15,000 rpm
Tool Interface:HSK-A63
Length:n/a
CS-26-135-S Diagram
Power (S1/S6):28 / 35 kW
Torque (S1/S6):90 / 113 Nm
Max. Speed:20,000 rpm
Tool Interface:HSK-A63
Length:546 mm
CS-28-180-A Diagram
Power (S1/S6):28 / 35 kW
Torque (S1/S6):90 / 113 Nm
Max. Speed:20,000 rpm
Tool Interface:HSK-A63
Length:n/a
CS-28-180-A (SELECT) Diagram
Power (S1/S6):34 / 42 kW
Torque (S1/S6):160 / 200 Nm
Max. Speed:12,000 rpm
Tool Interface:HSK-A100
Length:n/a
CS-34-180-S Diagram
Power (S1/S6):40 / 51 kW
Torque (S1/S6):67 / 85 Nm
Max. Speed:24,000 rpm
Tool Interface:HSK-A63
Length:480 mm
CS-40-160-S Diagram
Power (S1/S6):42 / 53 kW
Torque (S1/S6):201 / 253 Nm
Max. Speed:12,000 rpm
Tool Interface:HSK-A100
Length:n/a
CS-42-180-S Diagram
Power (S1/S6):45 / 54 kW
Torque (S1/S6):75 / 90 Nm
Max. Speed:18,000 rpm
Tool Interface:HSK-A63
Length:480 mm
CS-45-160-S Diagram
Power (S1/S6):60 / 80 kW
Torque (S1/S6):85 / 105 Nm
Max. Speed:22,000 rpm
Tool Interface:HSK-A63
Length:n/a
CS-60-180-S Diagram
Power (S1/S6):40 / 50 kW
Torque (S1/S6):160 / 200 Nm
Max. Speed:15,000 rpm
Tool Interface:HSK-A100
Length:n/a
CS-40-200-S Diagram
Power (S1/S6):50 / 64 kW
Torque (S1/S6):240 / 300 Nm
Max. Speed:8,000 rpm
Tool Interface:HSK-A100
Length:n/a
CS-50-200-S / CST-50-200-S Diagram
Power (S1/S6):57 / 65 kW
Torque (S1/S6):200 / 270 Nm
Max. Speed:12,500 rpm
Tool Interface:HSK-A100
Length:n/a
CS-57-200-S Diagram
Power (S1/S6):42 / 55 kW
Torque (S1/S6):400 / 525 Nm
Max. Speed:7,000 rpm
Tool Interface:HSK-A100 / SK50 / CB
Length:n/a
CS-42-238-S Diagram
Power (S1/S6):50 / 63 kW
Torque (S1/S6):248 / 315 Nm
Max. Speed:15,000 rpm
Tool Interface:HSK-A100
Length:n/a
CS-50-238-A / CST-50-238-A Diagram
Power (S1/S6):70 / 90 kW
Torque (S1/S6):85 / 105 Nm
Max. Speed:22,000 rpm
Tool Interface:HSK-A63
Length:n/a
CS-70-238-S Diagram
Power (S1/S6):74 / 94 kW
Torque (S1/S6):484 / 620 Nm
Max. Speed:10,000 rpm
Tool Interface:HSK-A100 / SK50
Length:n/a
CS-74-260-A Diagram
Power (S1/S6):76 / 95 kW
Torque (S1/S6):400 / 504 Nm (i=1), 1200 / 1512 Nm (i=3)
Max. Speed:6,000 rpm
Tool Interface:HSK-A100
Length:n/a
CSG-76-300-S Diagram

FORK ​MIL​LING HEAD SERIES

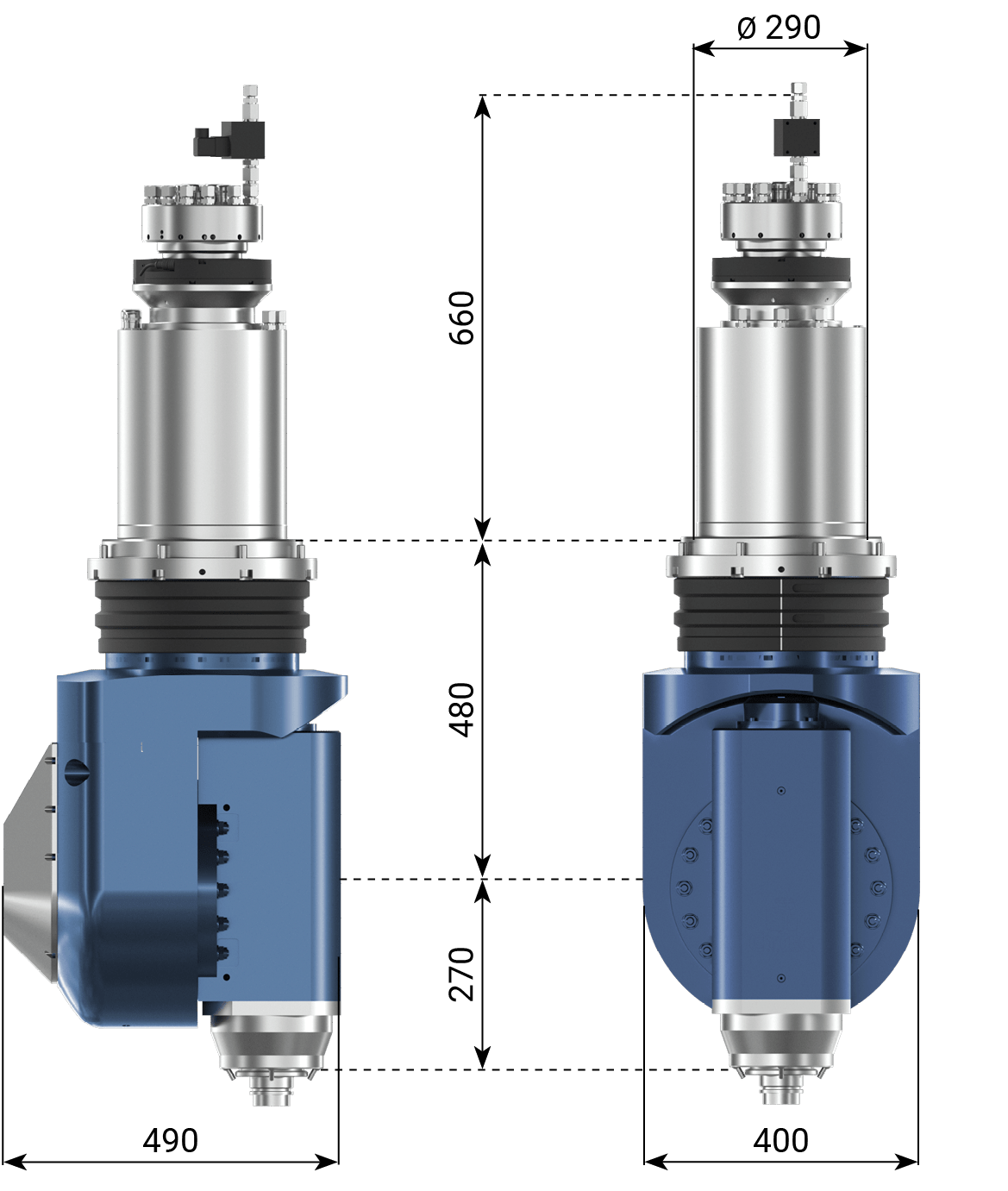

P-SERIES

CYTEC P-Series Milling Heads

Compact milling head with high torque, hydraulic clamping, ±120°/±360° rotation, 2″ accuracy, for dynamic 5-axis machining in tight spaces.

1 P SERIES 3 7
PDF

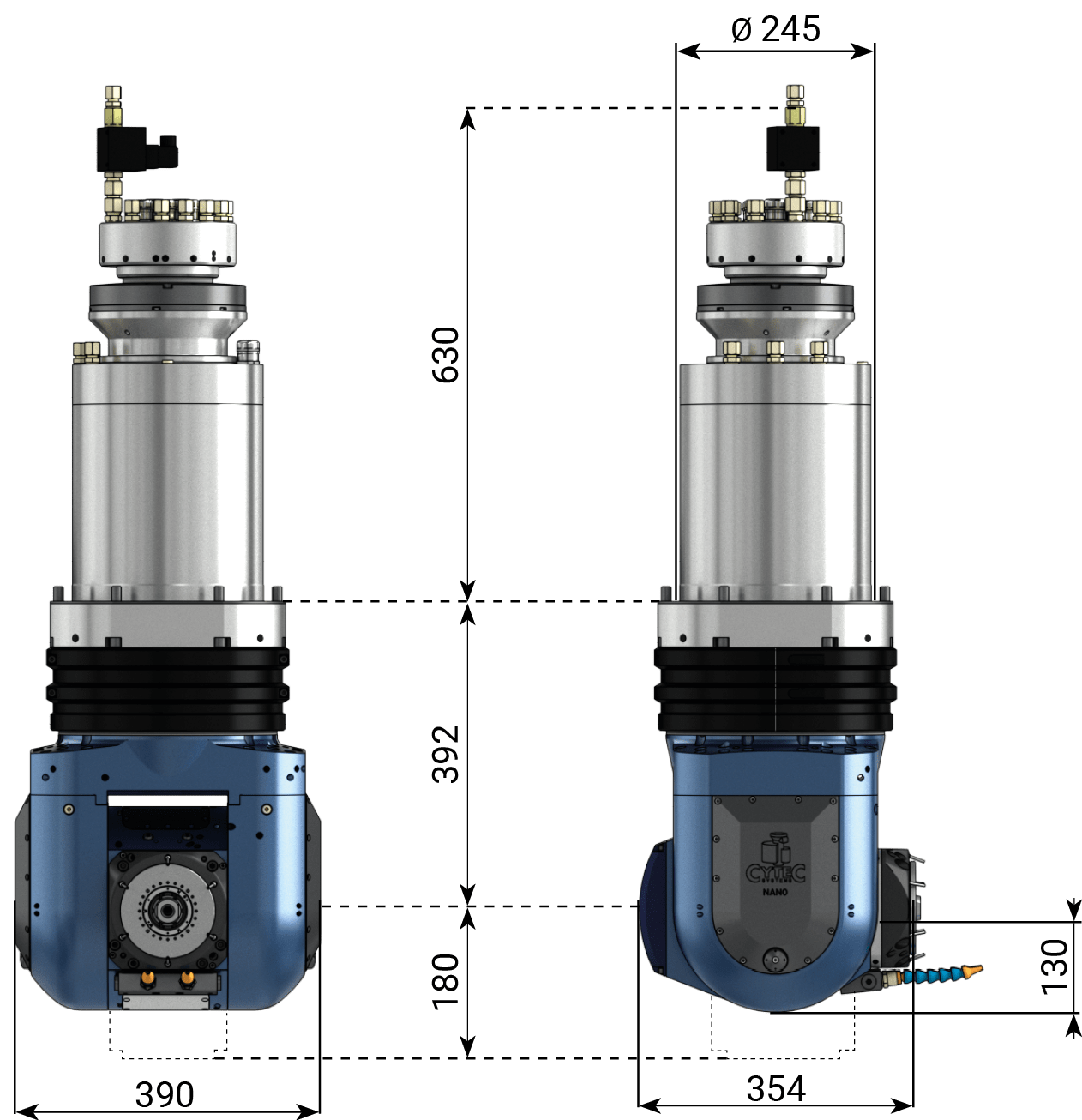

NANO-SERIES

CYTEC NANO-Series Milling Heads

Ultra-compact 2-axis fork head with ±115°/±360° motion, ±4″/±2″ positioning accuracy, and 1,000/2,500 Nm hydraulic clamping – ideal for high-precision 5-axis machining in tight spaces and lightweight setups.

1 NANO SERIES 2 6
PDF

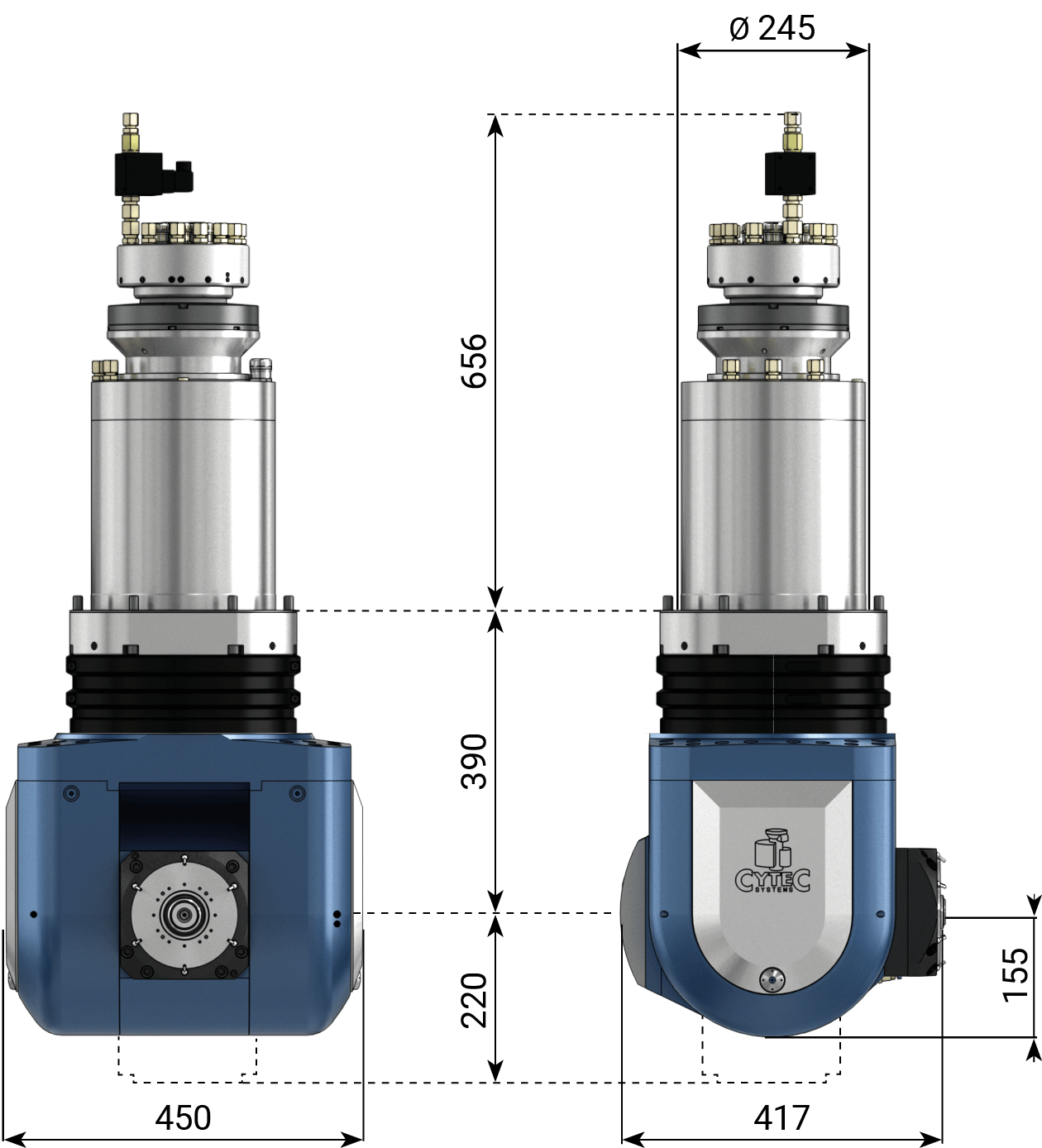

S-SERIES

CYTEC S-Series Milling HeadCompact and powerful 2-axis fork head with ±110°/±360° motion, ±4″/±2″ accuracy, and robust 2,500 Nm hydraulic clamping torque – 5-axis metal machining. DirectDrive motors deliver up to 770 Nm (A-axis) and 820 Nm (C-axis), with UHT variants reaching 1,120 Nm.

1 S SERIES 2 6
PDF

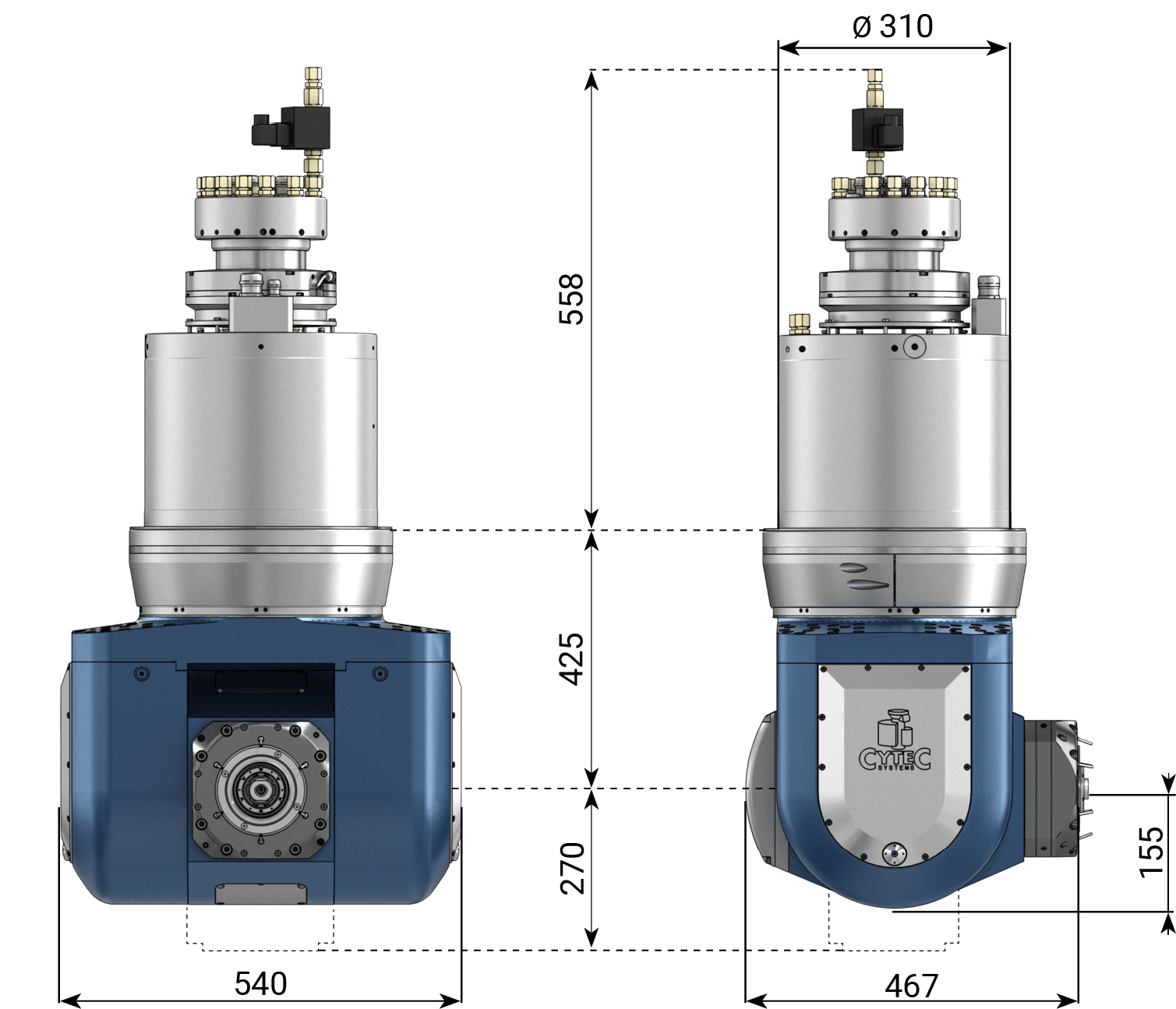

S-SERIES HD

CYTEC S-Series HD Milling Head
Heavy-duty 2-axis fork head with ±110°/±360° motion, ±4″/±2″ accuracy, and massive 3,000 Nm clamping torque – designed for high-performance 5-axis metal machining under extreme loads. With UHT DirectDrive motors delivering up to 1,410 Nm (A-axis) and 1,410 Nm (C-axis)

1 S HDSERIES 1 6
PDF

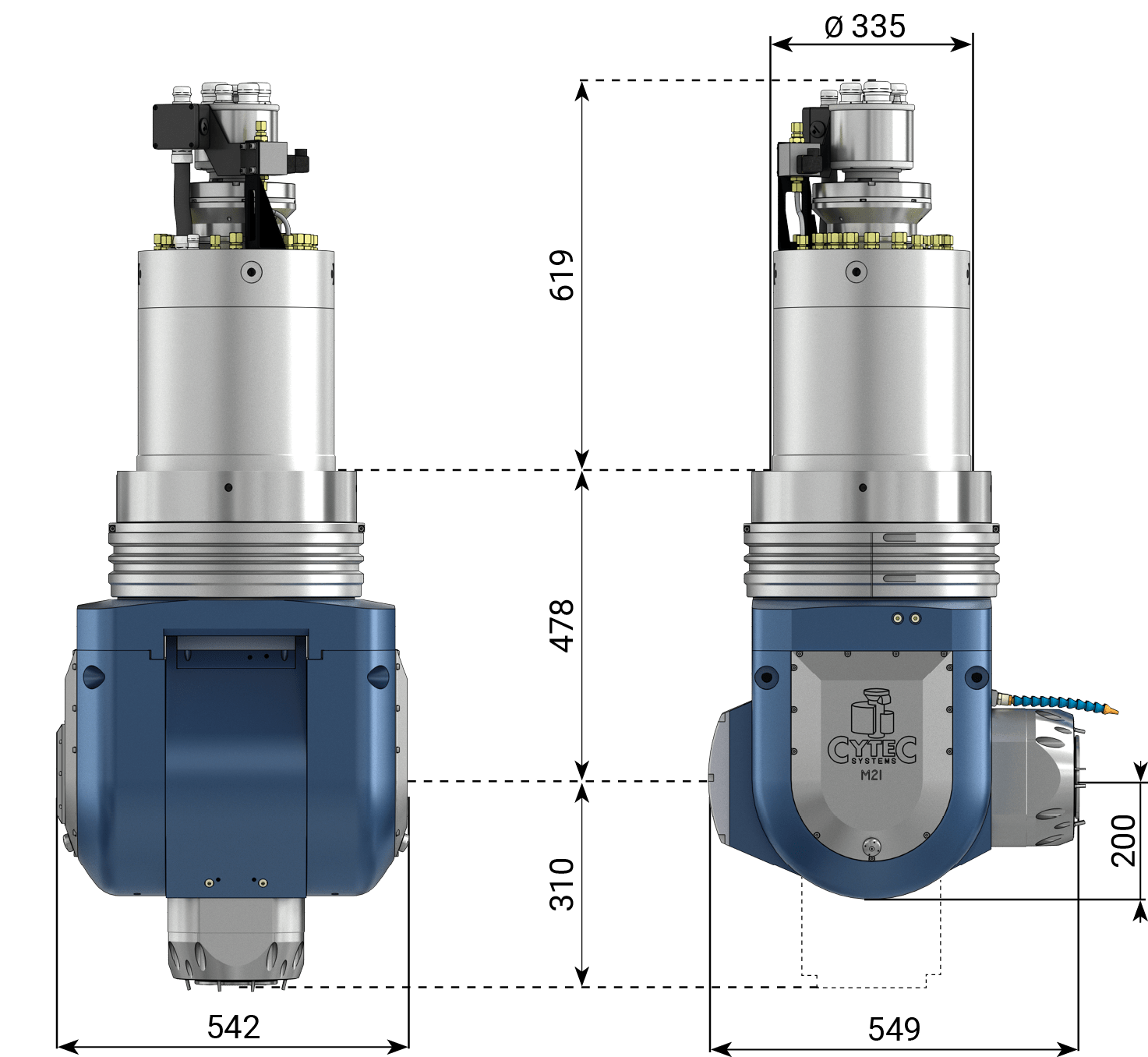

M-SERIES

CYTEC M-Series Milling Heads

Powerful all-rounder with 110°/360° motion, ±4″/±2″ precision, 4000/4000 Nm clamping – built for high-speed, high-torque 5-axis milling, turning, and grinding.

M SERIES 1 7
PDF

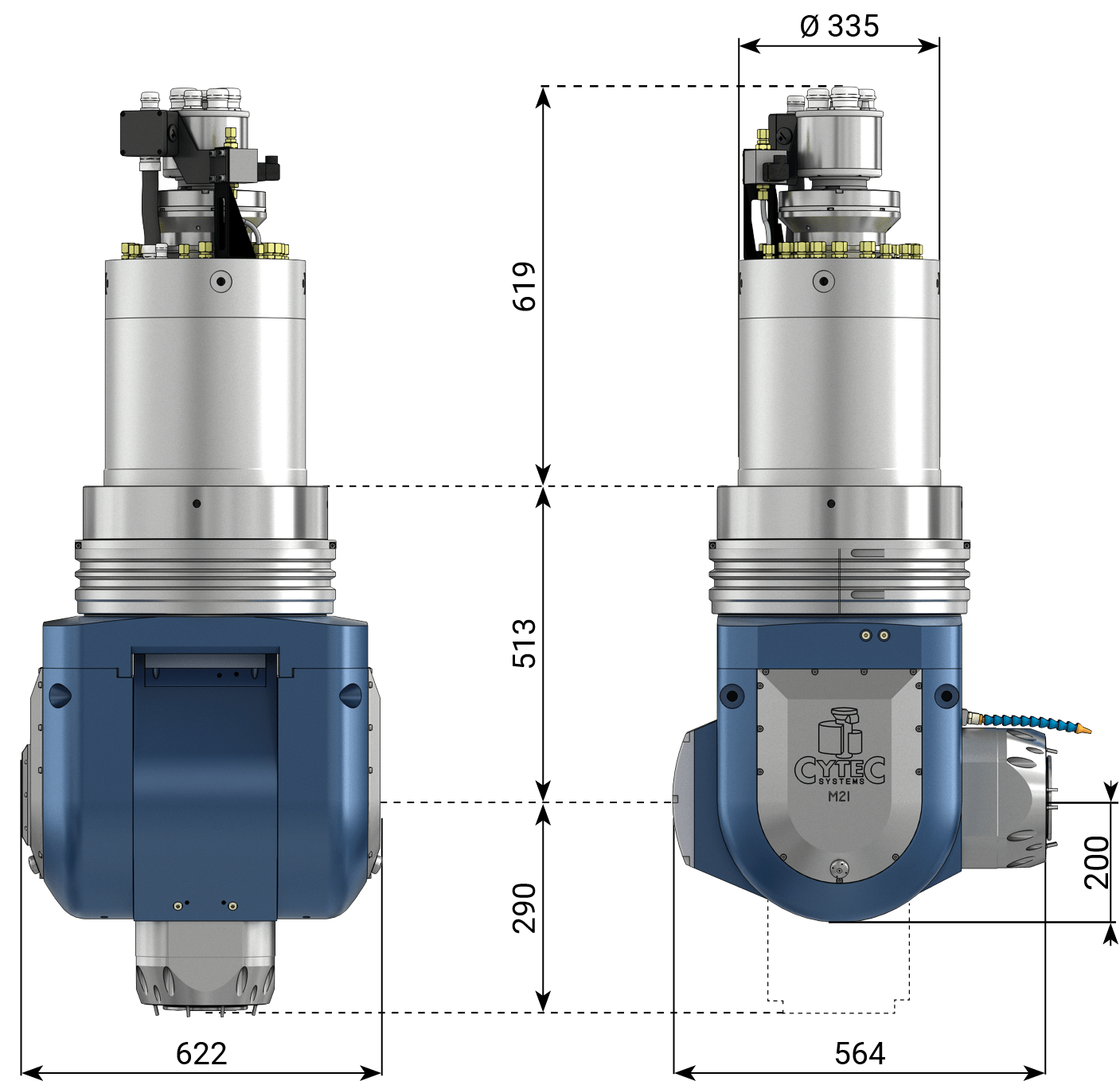

M-SERIES HD

CYTEC M-Series HD Milling Heads

Robust heavy-duty fork head with 110°/360° motion, ±5″/±2″ accuracy, 4000/5000 Nm clamping – perfect for demanding roughing and finishing in aerospace and heavy industries.

M HD SERIES 1 6
PDF

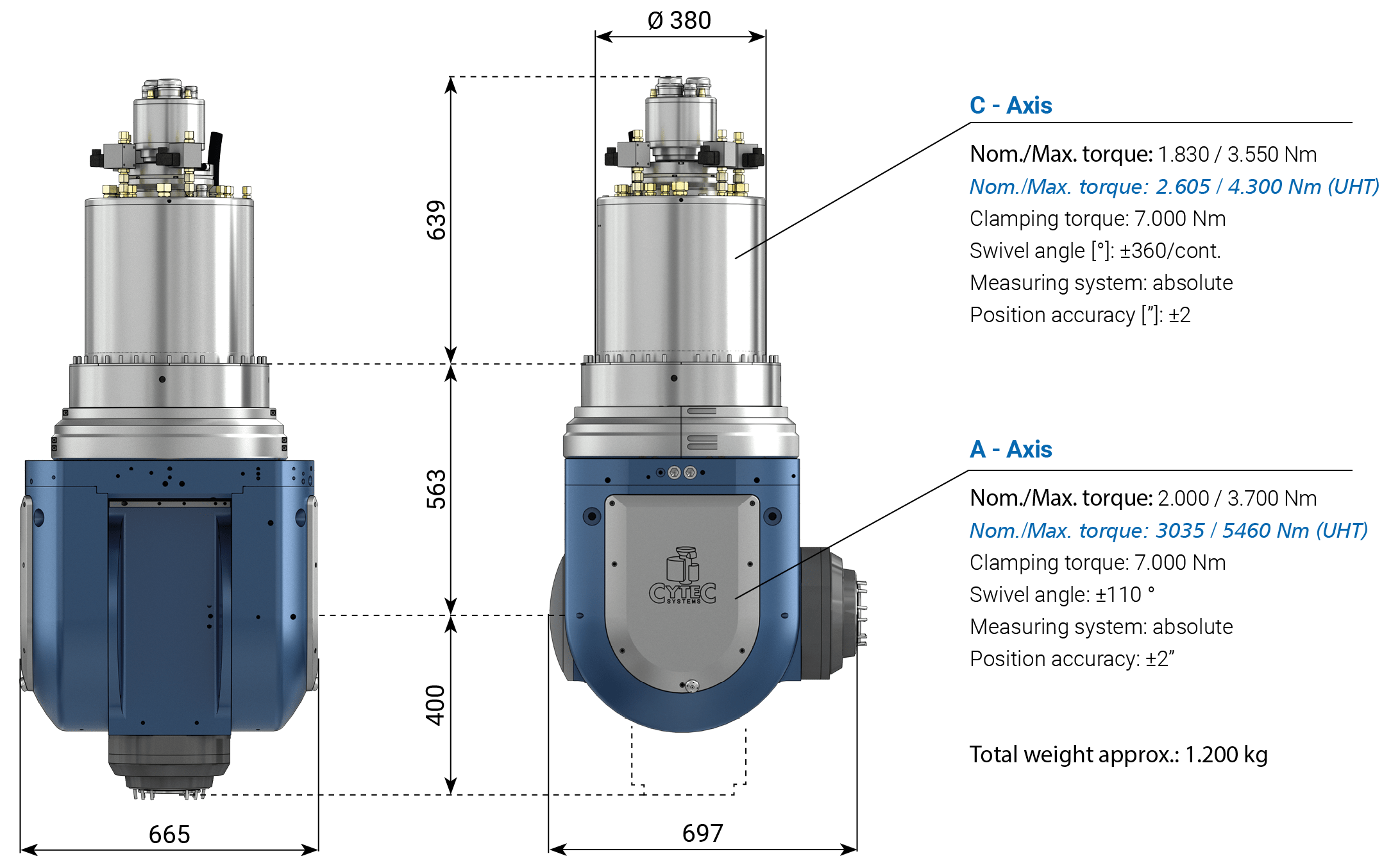

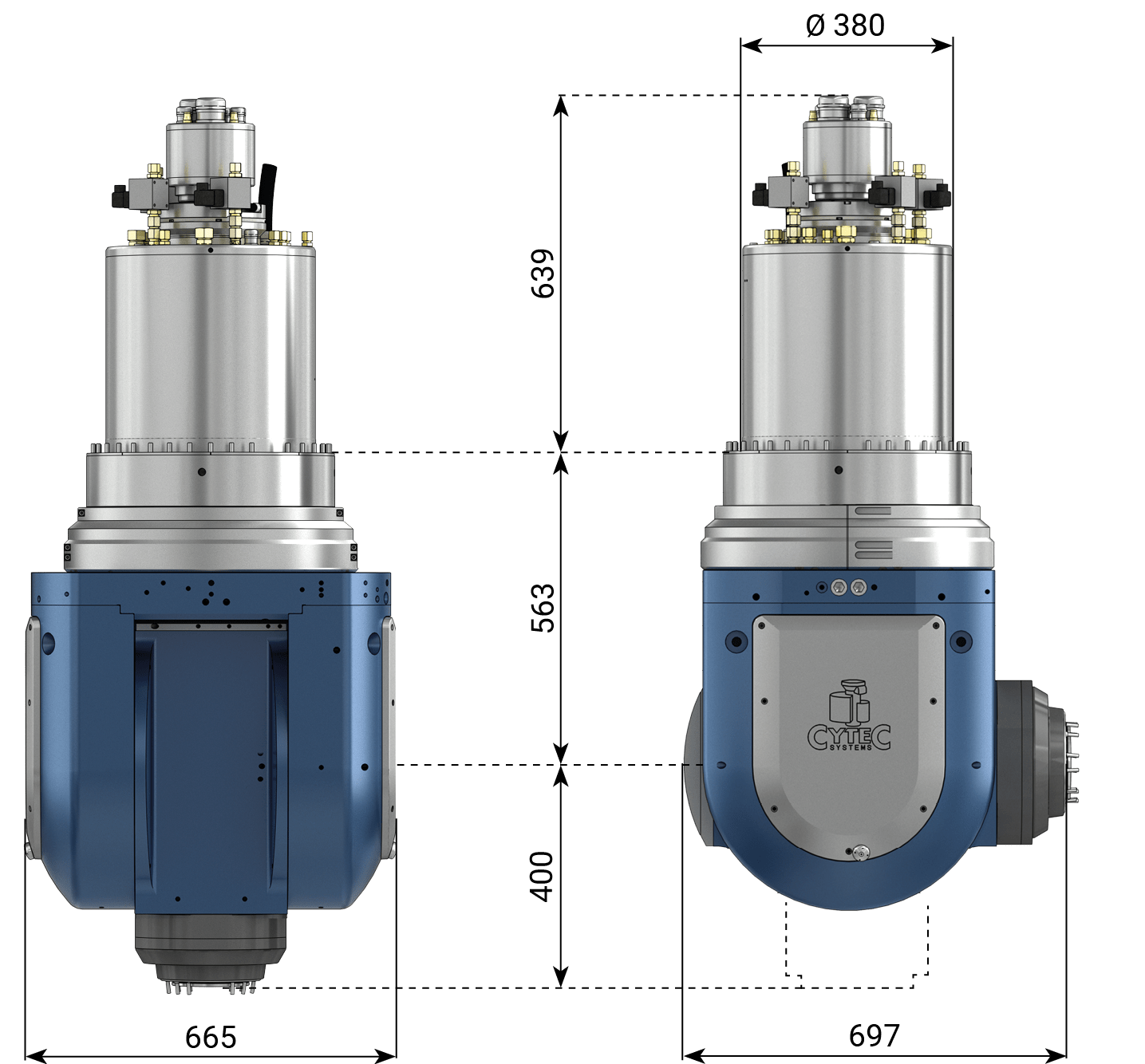

G-SERIES

CYTEC G-Series Milling Heads

High-torque fork head with 110°/360° swivel, ±2.5″/±2″ accuracy, up to 7000 Nm clamping – optimized for dynamic, large-part machining with top power density.

G SERIES 1 5
PDF

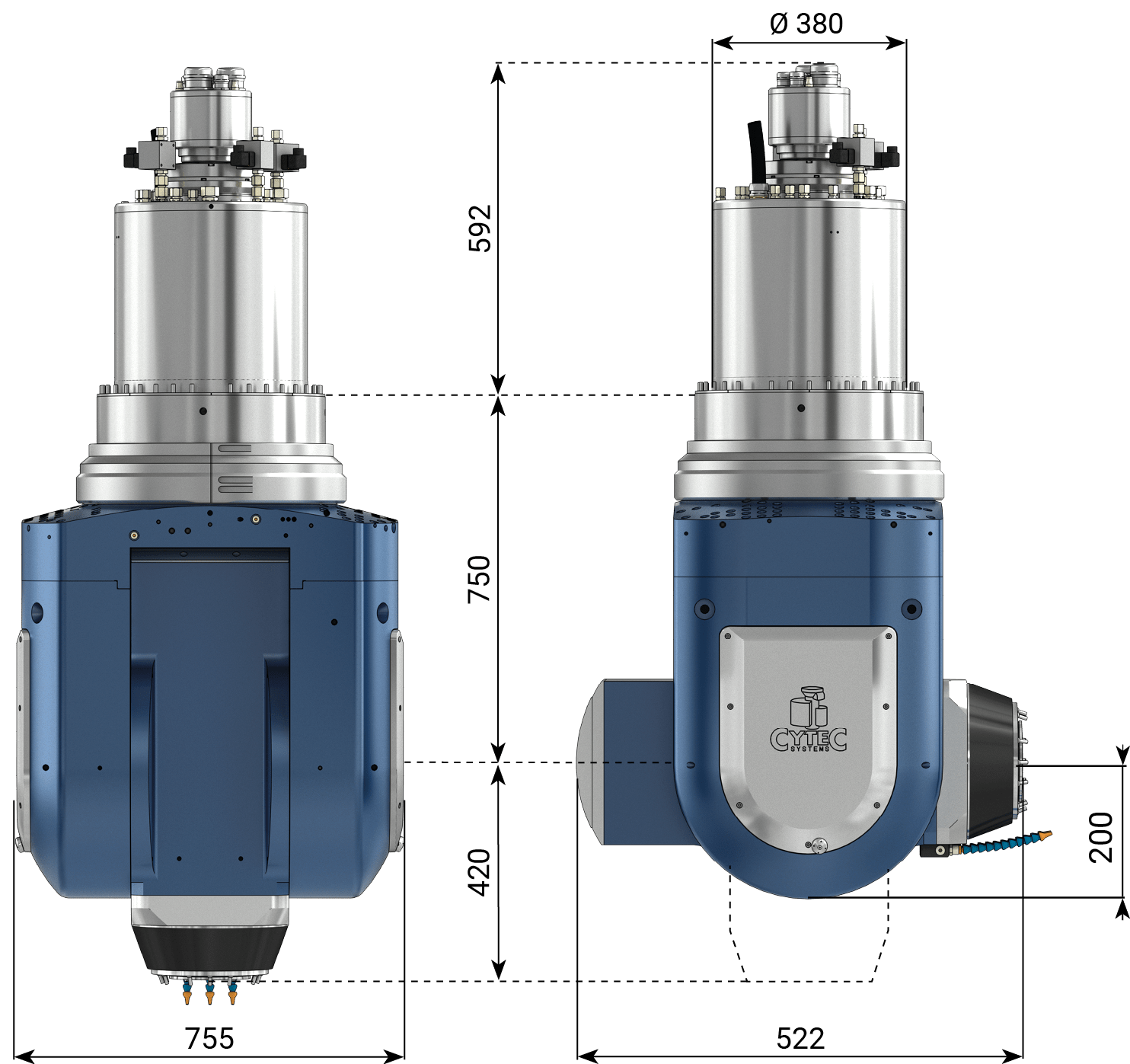

G-SERIES HD

CYTEC G-Series HD Milling Heads

Ultra-rigid heavy-duty head with 110°/360° motion, ±2.5″/±2″ accuracy, 7500/7500 Nm clamping torque – engineered for maximum torque and precision in large-part machining and tough materials.

G HD SERIES 1 7
PDF

Milling Heads for Special Applications

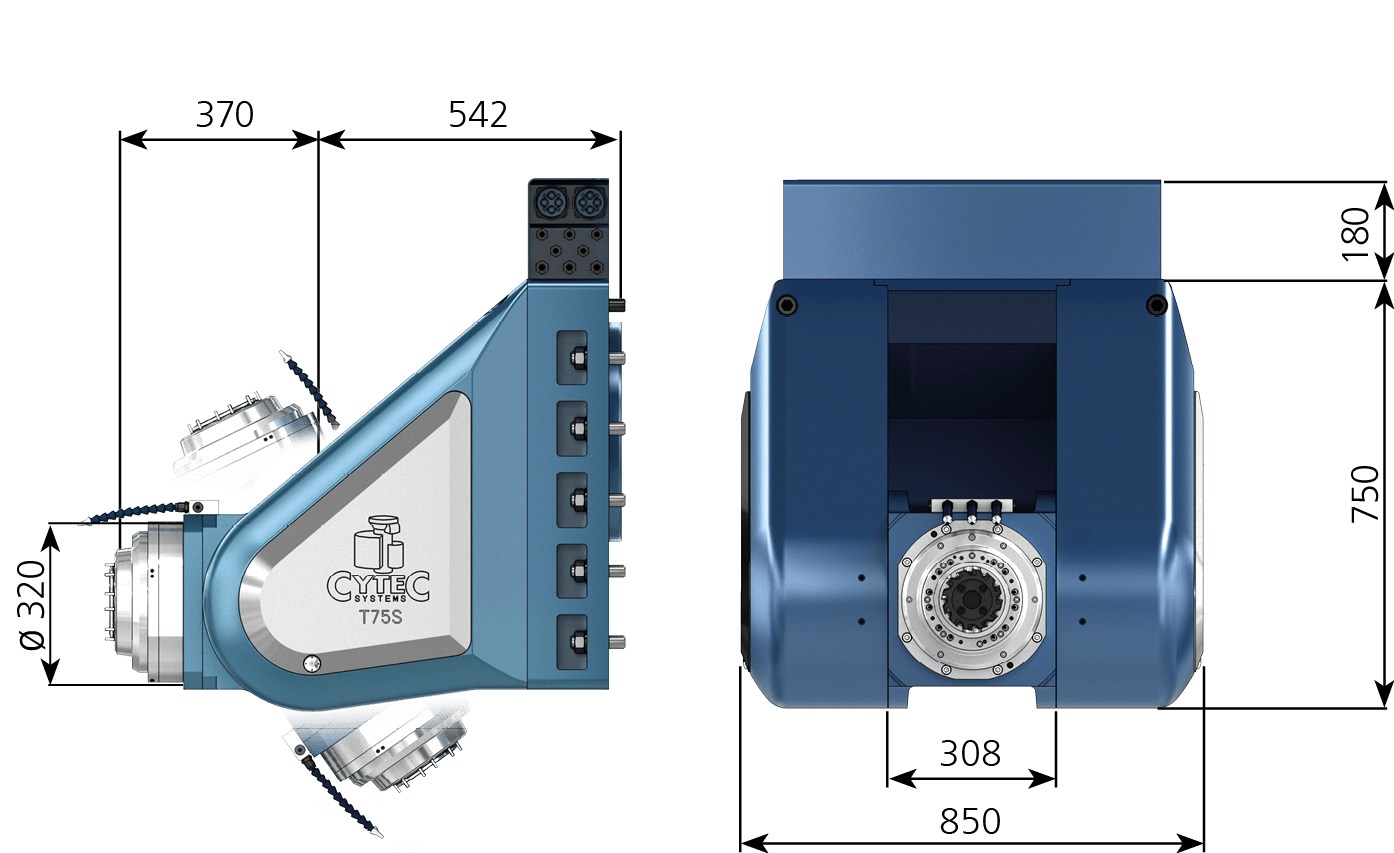

T-SERIES

CYTEC T-Series Milling Heads

Compact milling head with high torque,  Nom./Max. torque: 2.380/ 4.400 Nm
Nom./Max. torque:3.405 /5.770 Nm (UHT)
Clamping torque: 6.500 Nm
Swivel angle: -135° / +55°
Measuring system: absolute
Position accuracy: ±2”

T HEAD 7
PDF

HD-SERIES

CYTEC HD-Series HD Milling Heads



CYTEC CYMILL HD 2023 de print
PDF

K-SERIES

CYTEC K-Series HD Milling Heads



K50highZ

UNIVERSAL ​

MIL​LING HEAD SERIES



M-SERIES 45°

CYTEC M-Series Milling Heads

Compact milling head with high torque, hydraulic clamping, ±180°/±360° rotation, 2″ accuracy, for dynamic 5-axis machining in tight spaces.

M45 2
PDF

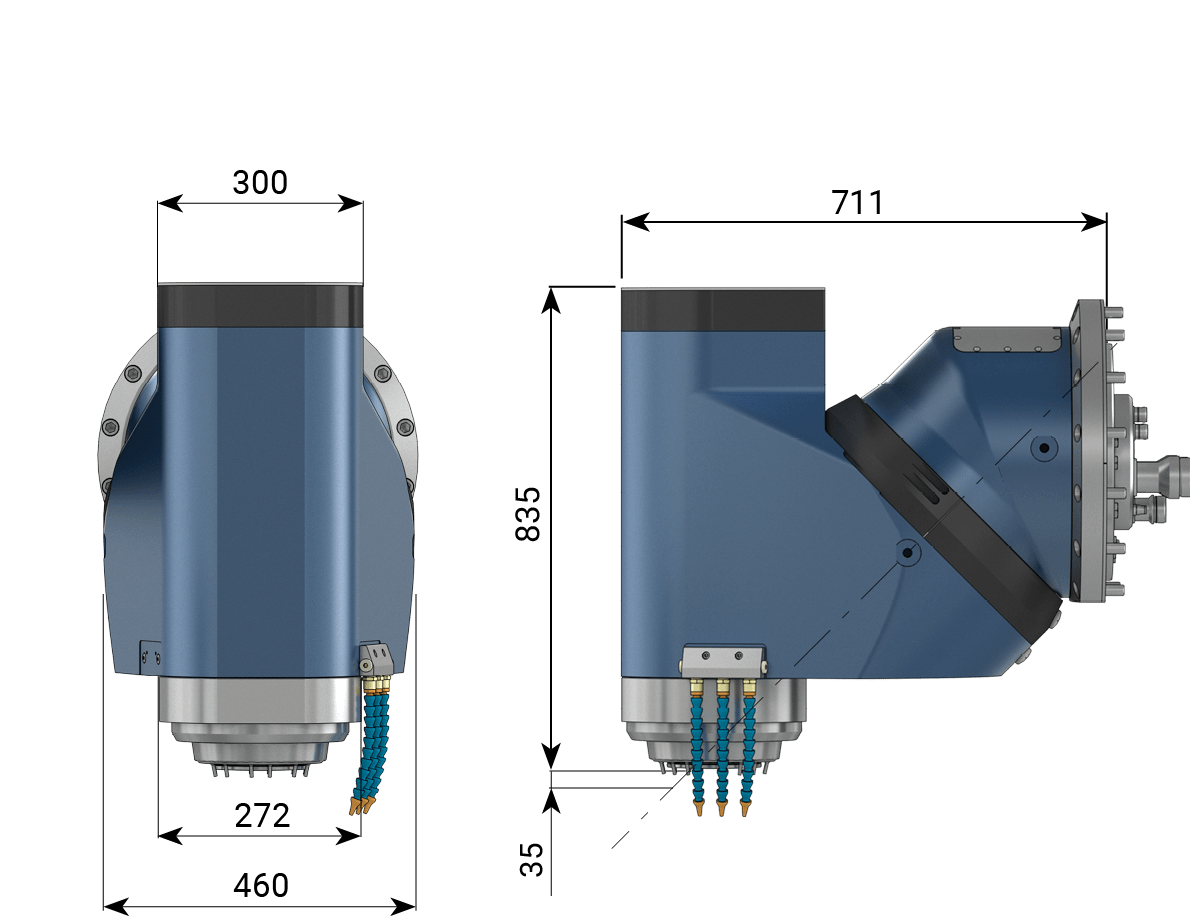

M-SERIES 45° HD

CYTEC P-Series Milling Heads

Compact milling head with high torque, hydraulic clamping, ±190° rotation, 2″ accuracy, for dynamic 5-axis machining in tight spaces

M Series45HD
PDF

M-SERIES 2X45°

CYTEC M-SERIES 2X45°

Compact milling head with high torque, hydraulic clamping, ±190°/±360° rotation, 2″ accuracy, for dynamic 5-axis machining in tight spaces.

M Series2X45
PDF

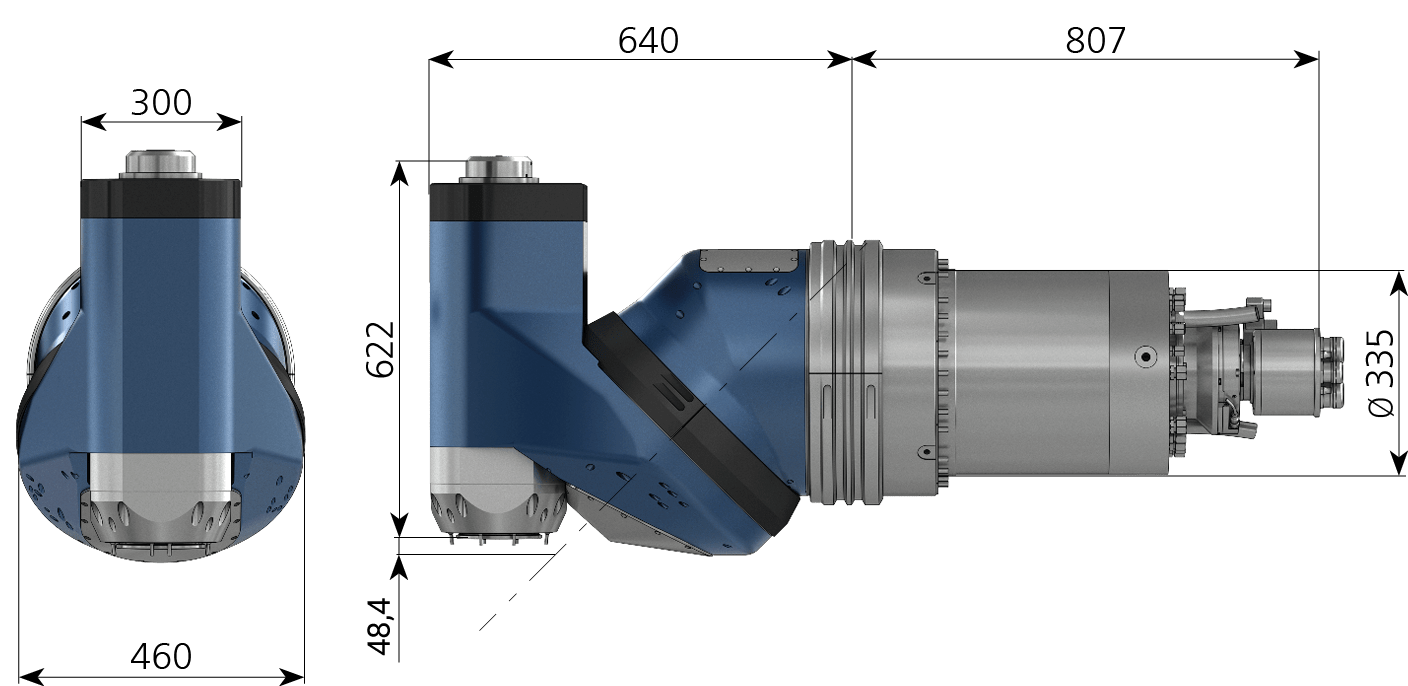

M-SERIES 2X45° HD

CYTEC P-Series Milling Heads

Compact milling head with high torque, hydraulic clamping, ±190°/±360° rotation, 2″ accuracy, for dynamic 5-axis machining in tight spaces

M Series2X45HD
PDF

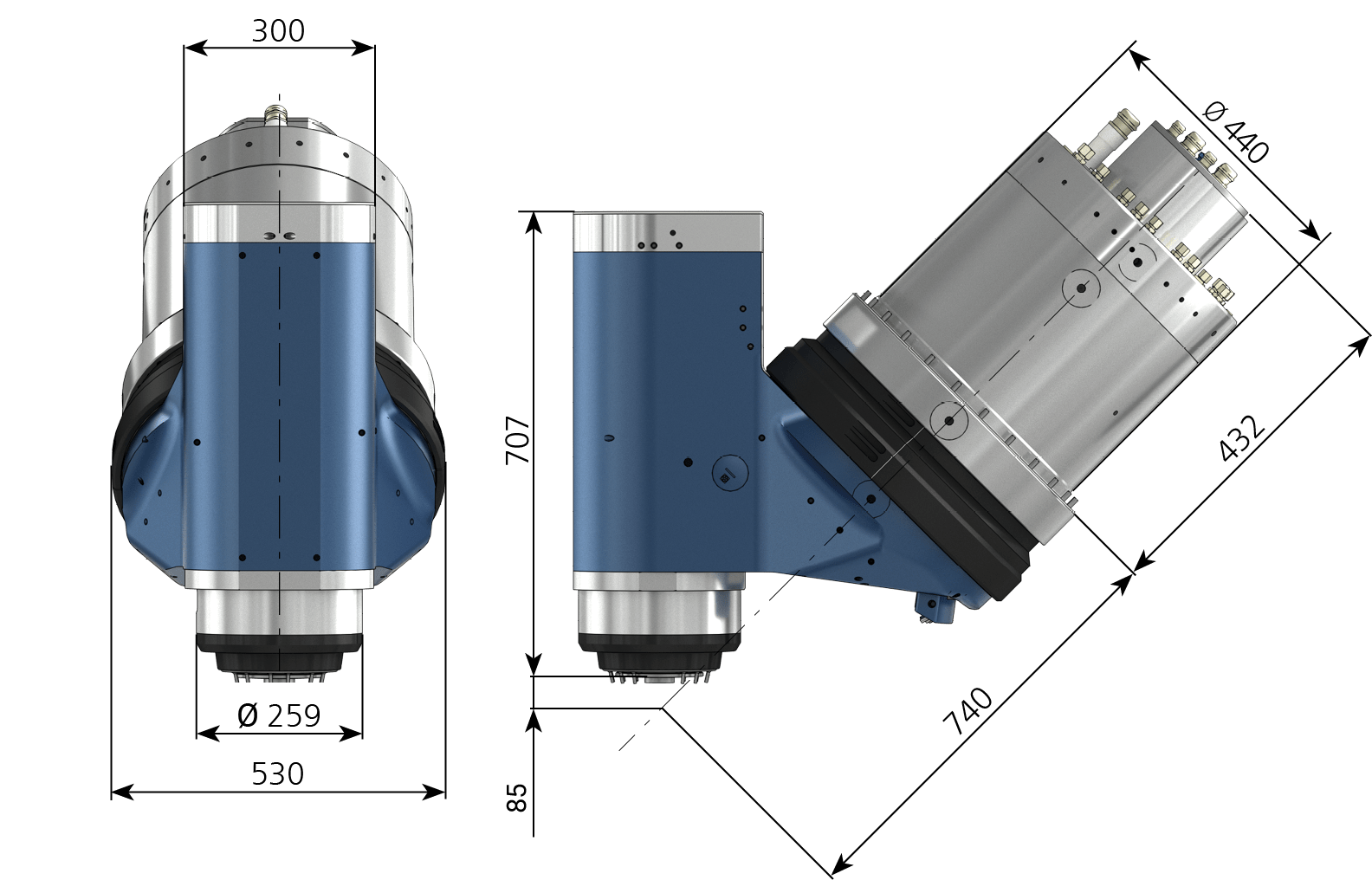

G-SERIES 45°

CYTEC P-Series Milling Heads

Compact milling head with high torque, hydraulic clamping, ±180° rotation, 2″ accuracy, for dynamic 5-axis machining in tight spaces.

G45 1
