With one- or two-axis NC top-mounted rotary tables from CYTEC, you can extend the capabilities of your machining center and expand your service offering. Retrofitting with horizontal, vertical, or rotary swivel tables opens up new business opportunities in sectors such as toolmaking, mold construction, or machine building.
CYTEC torque motors, specifically developed for NC rotary tables and featuring an energy-efficient external rotor design, offer maximum positioning accuracy, high torque, outstanding acceleration values, and excellent thermal stability. Modern bearing technology ensures long service life and virtually maintenance-free operation.

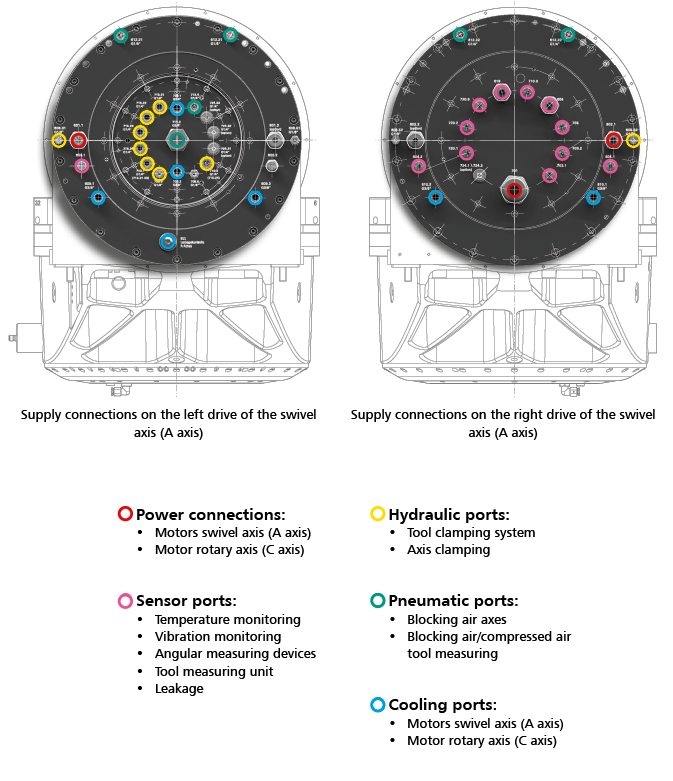

CYTEC rotary tables are built to be robust and highly durable. Available in various diameters up to 2,000 mm, they are suitable for a wide range of applications – whether as rotary, milling, or grinding tables. Rotary unions for air or oil supply allow easy integration into automation systems and the use of a wide variety of clamping devices.

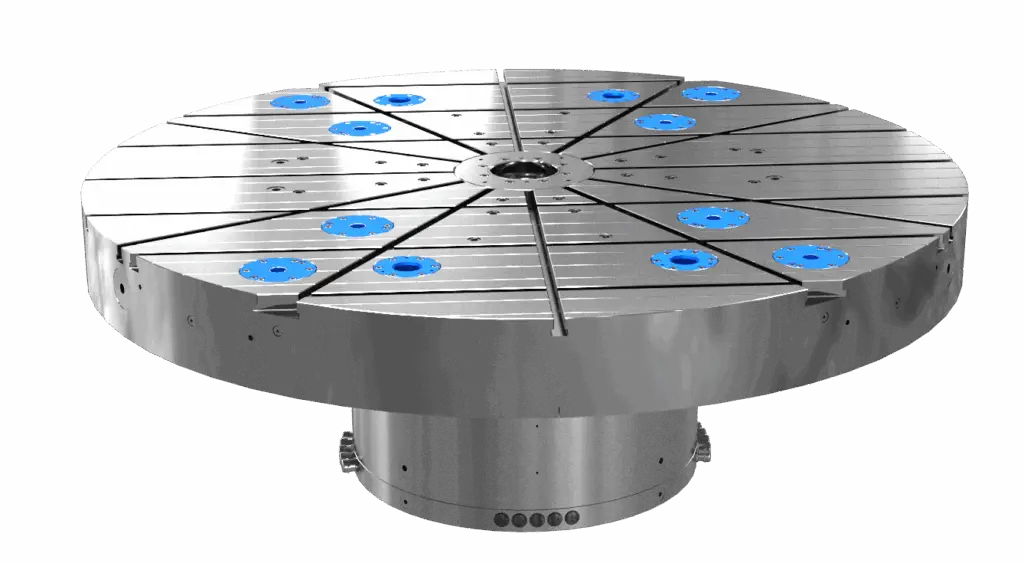

Precision T-slots and large central bores enable flexible clamping solutions. Additionally, the tables can be equipped with the new CyTab zero-point clamping system for fast and efficient pallet, fixture, or plate changeovers.
| Type | Face Plate [mm] | Max Load [kg] | Max Speed [rpm] | Planar Runout [mm] | Swivel | Rated Torque [Nm] | Peak Torque [Nm] | Clamping Torque [Nm] | Power [kW] | Weight [kg] |
|---|---|---|---|---|---|---|---|---|---|---|
| CRT/200/H | 200 | 100 | 2000 | 0.01 | continuous | 106 | 200 | - | 2.1 | 70 |
| CRT/400/H | 400 | 500 | 350 | 0.01 | continuous | 193 | 495 | 1000 | 0.7 | 300 |
| CRT/500/H | 500 | 800 | 300 | 0.01 | continuous | 230 | 600 | 2000 | 0.7 | 300 |
| CRT/660/H | 660 | 1000 | 80 | 0.02 | continuous | 740 | 2000 | 3700 | 1.3 | 450 |
| CRT/750/H | 750 | 2000 | 110 | 0.02 | continuous | 580 | 1560 | 6000 | 1.3 | 600 |
| CRT/1000/H | 1000 | 4000 | 40 | 0.02 | continuous | 1470 | 3940 | 10000 | 2.2 | 1600 |
| CRT/1800/H | 1800 | 6000 | 40 | 0.02 | continuous | 1470 | 3940 | 10000 | 2.2 | 4000 |
| CRT/630/H | 500 (630) | 1000 | 115 | 0.01 | continuous | 570 | 1500 | 5000 | 1.4 | 500 |
| CRT/800/H | 800 | 1500 | 80 | 0.01 | continuous | 778 | 2080 | 7650 | 1.6 | 680 |
| CRT/090/V | DIN 55 026-A3 | 75 | 30 | 0.01 | continuous | 20 | 38 | 250 | 1.0 | 40 |
| CRT/165/V | DIN 55 026-A6 | 150 | 2000 | 0.01 | continuous | 106 | 200 | 500 | 2.2 | 100 |
| CRT/350/V | 350 | 200 | 300 | 0.01 | continuous | 227 | 600 | 2000 | 0.7 | 230 |
| CRT/500/V | 500 | 400 | 110 | 0.01 | continuous | 580 | 1600 | 3000 | 1.3 | 350 |

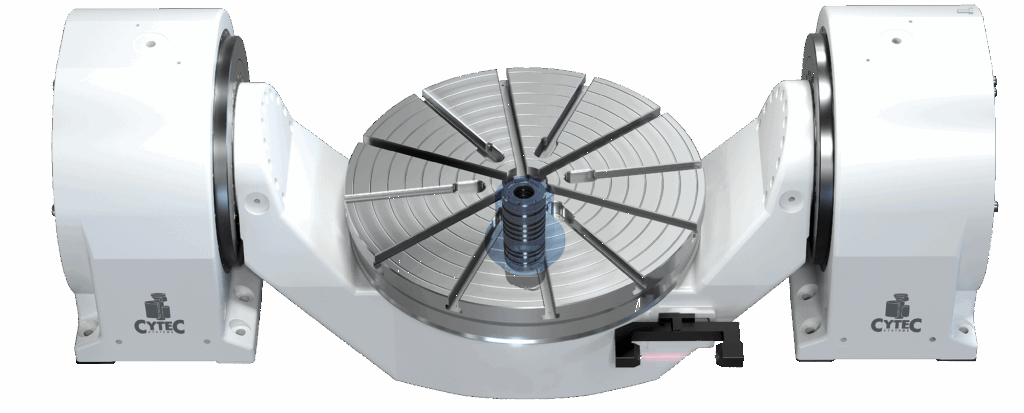

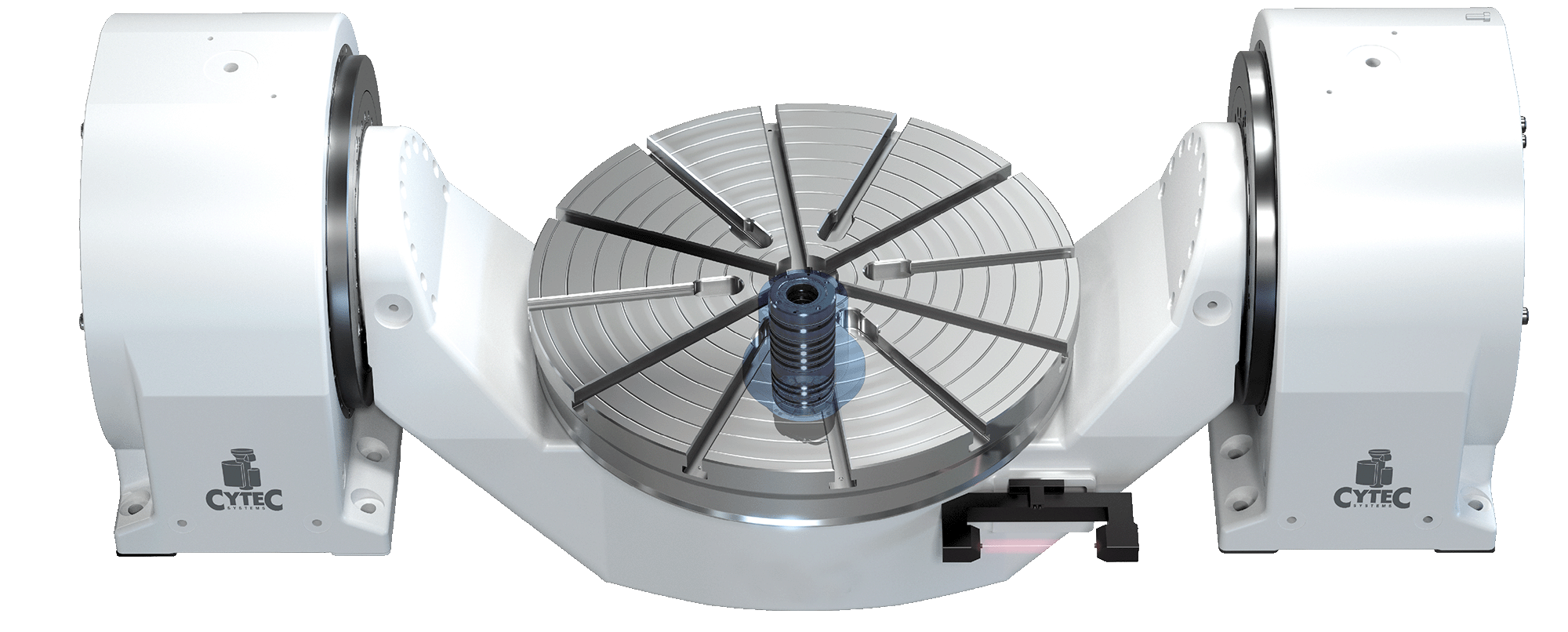

| Type | Face Plate [mm] | Max Load [kg] | Max Speed [rpm] | Rated Torque [Nm] | Peak Torque [Nm] | Clamping Torque [Nm] | Position Accuracy ["] | Drive |
|---|---|---|---|---|---|---|---|---|
| CRT-2-500 | 500 | 600 | 200 | 550 | 970 | 3,200 | 4 | Single |
| CRT-2-500 | 500 | 350 | 1500 | 550 | 970 | 3,200 | 4 | Dual |
| CRT-2-600 | 600 | 600 | 200 | 550 | 970 | 3,200 | 4 | Single |
| CRT-2-600 | 600 | 350 | 1500 | 550 | 970 | 3,200 | 4 | Dual |
| CRT-2-630 | 630 | 1300 | 110 | 2,570 | 4,110 | 4,000 | 4 | Dual |
| CRT-2-630 | 630 | 850 | 1000 | 2,100 | 3,100 | 4,000 | 4 | Dual |
| CRT-2-800 | 800 | 1300 | 110 | 2,570 | 4,110 | 4,000 | 4 | Dual |
| CRT-2-800 | 800 | 850 | 1000 | 2,100 | 3,100 | 4,000 | 4 | Dual |
| CRT-2-1000 | 1000 | 2500 | 80 | 3,611 | 6,707 | 12,000 | 4 | Dual |
| CRT-2-1000 | 1000 | 1000 | 500 | 2,583 | 4,540 | 12,000 | 4 | Dual |
| CRT-2-1200 | 1200 | 2500 | 80 | 3,611 | 6,707 | 12,000 | 4 | Dual |
| CRT-2-1200 | 1200 | 1000 | 500 | 2,583 | 4,540 | 12,000 | 4 | Dual |
