CYMILL · Milling Heads

Fork Milling Head Series

The fork milling head has the ability to simultaneously position the cutter in space by controlling the A-axis and the C-axis at the same time. By combining the movements of the two axes, the fork milling head can position the cutter in any desired position in space, allowing complex and precise cuts on the workpiece. This type of milling head is particularly suitable for the production of complex tools and shapes where high precision and flexibility are required.

CYTEC CYMILL P-Series fork milling head

P-Series

Compact milling head with high torque, hydraulic clamping, ±120°/±360° rotation and 2″ accuracy – for dynamic 5-axis machining in tight spaces.

Details PDF
CYTEC CYMILL NANO-Series ultra-compact fork milling head

NANO-Series

Ultra-compact head with 115°/360° motion, ±5″/±2″ accuracy and 700/2,500 Nm clamping torque – perfect for precise micromachining and tight spaces.

Details PDF
CYTEC CYMILL S-Series fork milling head with DirectDrive

S-Series

Slim, robust milling head with ±110°/360° motion, ±5″/±2″ precision and 1,500 Nm clamping – ideal for compact, powerful steel machining.

Details PDF
CYTEC CYMILL S-Series HD heavy-duty fork milling head

S-Series HD

Slim heavy-duty head with ±110°/360° motion, 2,400 Nm clamping torque and ±2″ precision – built for structural part machining with maximum rigidity.

Details PDF
CYTEC CYMILL M-Series fork milling head

M-Series

Powerful all-rounder with 110°/360° motion, ±4″/±2″ precision and 4,000/4,000 Nm clamping – built for high-speed, high-torque 5-axis milling, turning and grinding.

Details PDF
CYTEC CYMILL M-Series HD heavy-duty fork milling head

M-Series HD

Robust heavy-duty fork head with 110°/360° motion, ±5″/±2″ accuracy and 4,000/5,000 Nm clamping – perfect for demanding roughing and finishing in aerospace and heavy industries.

Details PDF
CYTEC CYMILL G-Series high-torque fork milling head

G-Series

High-torque fork head with 110°/360° swivel, ±2.5″/±2″ accuracy and up to 7,000 Nm clamping – optimized for dynamic, large-part machining with top power density.

Details PDF
CYTEC CYMILL G-Series HD ultra-rigid heavy-duty milling head

G-Series HD

Ultra-rigid heavy-duty head with 110°/360° motion, ±2.5″/±2″ accuracy and 7,500/7,500 Nm clamping torque – engineered for maximum torque and precision in large-part machining and tough materials.

Details PDF
CYTEC CYMILL T-Series powerhead for aerospace machining

T-Series

Powerhead for complex parts and aerospace applications. Nom./max. torque 2,380/4,400 Nm (3,405/5,770 Nm UHT), clamping torque 6,500 Nm, swivel angle -135°/+55°, absolute measuring system, ±2″ position accuracy.

Details PDF

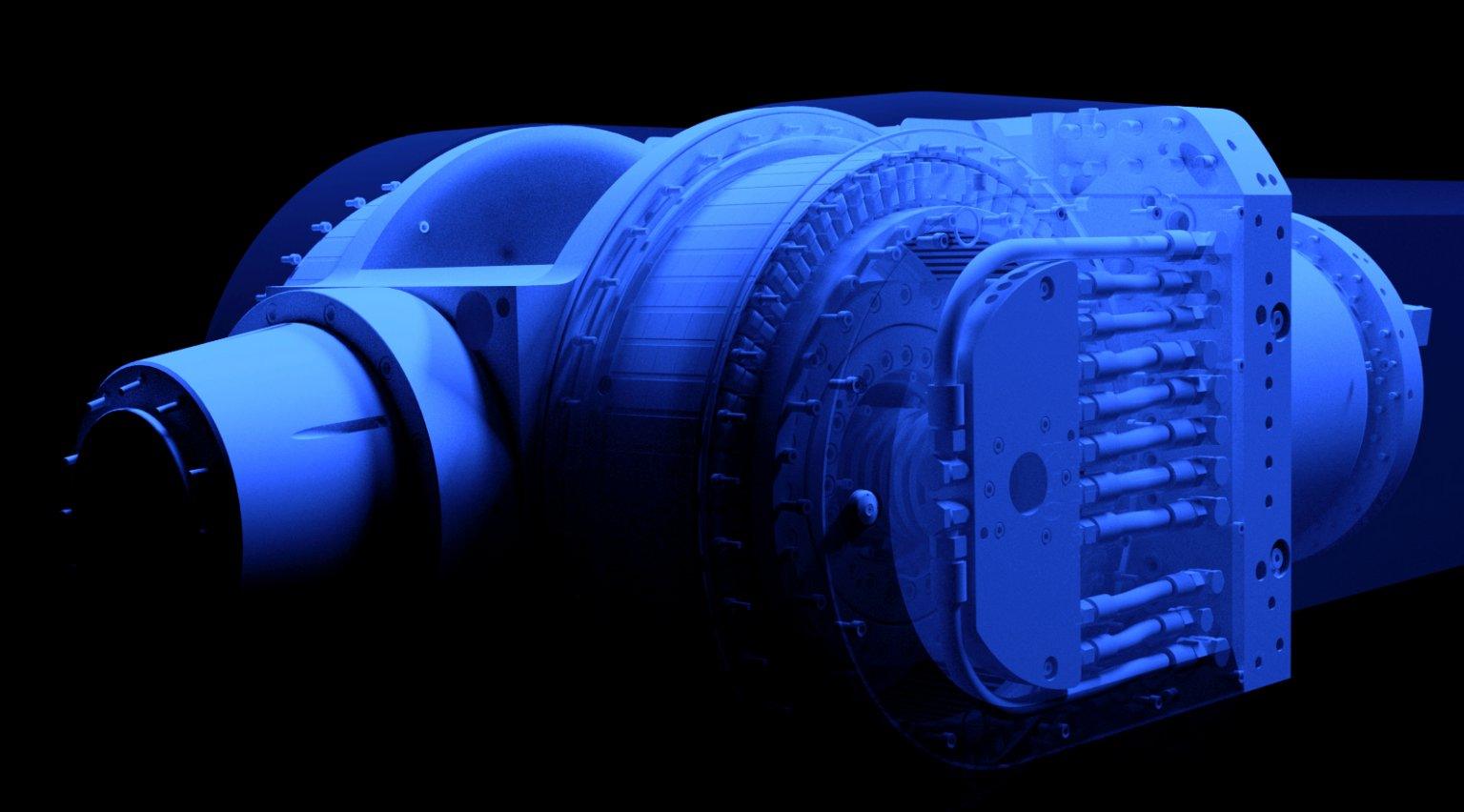

CYTEC CYMILL K50-Series – largest fork-type milling head

K50-Series

The largest CYMILL fork-type head, built for extreme cutting forces: rated/peak torque 4,380/7,500 Nm (C-axis) and 7,220/13,400 Nm (A-axis), with integrated 76 kW CYSPEED spindle (up to 1,200 Nm with i = 3 planetary gear).

Details
CYMILL · Milling Heads

Universal Milling Head Series

The universal milling head allows precise machining of workpieces thanks to its compact design and its ability to reach both the lowest horizontal and the highest vertical machining space. It is ideal for horizontal machine tools in combination with a rotary table system and offers the best power density on the market. A high-torque mechanical transmission spindle handles even hard-to-cut materials.

CYTEC CYMILL M-Series 45 degree universal milling head

M-Series 45°

Compact universal milling head with high torque, hydraulic clamping, ±180°/±360° rotation and ±2″ accuracy – for dynamic 5-axis machining in tight spaces.

Details PDF
CYTEC CYMILL M-Series 45 degree HD universal milling head

M-Series 45° HD

Heavy-duty version of the 45° universal head with high torque, hydraulic clamping, ±190° rotation and ±2″ accuracy – for dynamic 5-axis machining under higher loads.

Details PDF
CYTEC CYMILL M-Series 2x45 degree universal milling head

M-Series 2x45°

Double-45° universal milling head with high torque, hydraulic clamping, ±190°/±360° rotation and ±2″ accuracy – maximum flexibility for 5-axis machining in tight spaces.

Details PDF
CYTEC CYMILL M-Series 2x45 degree HD universal milling head

M-Series 2x45° HD

Heavy-duty double-45° head with high torque, hydraulic clamping, ±190°/±360° rotation and ±2″ accuracy – for demanding 5-axis machining with maximum reach.

Details PDF
CYTEC CYMILL G-Series 45 degree universal milling head

G-Series 45°

Large universal milling head with high torque, hydraulic clamping, ±180° rotation and ±2″ accuracy – power density for large-part 5-axis machining.

Details PDF
Inside Every CYMILL Head

CYSPEED Motor Spindles & TorqueTec Torque Motors

CYSPEED Motor Spindles

At the heart of every CYMILL milling head works a CYSPEED motor spindle, developed and manufactured in-house by CYTEC. The modular spindle kit covers 13 to 115 kW rated power (S1), rated torques up to 700 Nm – up to 1,200 Nm with planetary gear – and speeds up to 24,000 rpm, with HSK-A63, HSK-A100, SK50 and C8 tool interfaces. This in-house spindle development is a key reason for the precision and reliability of CYMILL heads.

Motor Spindle Data

TorqueTec Torque Motors

TorqueTec is CYTEC's German powerhouse for torque motor development and production. With over a quarter-century of experience and close collaborations with universities and research institutions, TorqueTec has achieved remarkable strides in power density and reduced heat loss. The complete production depth – from engineering and manufacturing to assembly and quality control – is conducted in-house, delivering the direct drives that give CYMILL heads their dynamics and precision.

Torque Motor Data
