CYMILL · Fork Milling Heads

T-Series – The Powerhead for Aerospace Machining

PDF Datasheet

A true powerhouse that meets 100% of the requirements needed to machine complex workpieces made of high-strength materials – also for the aerospace industry.

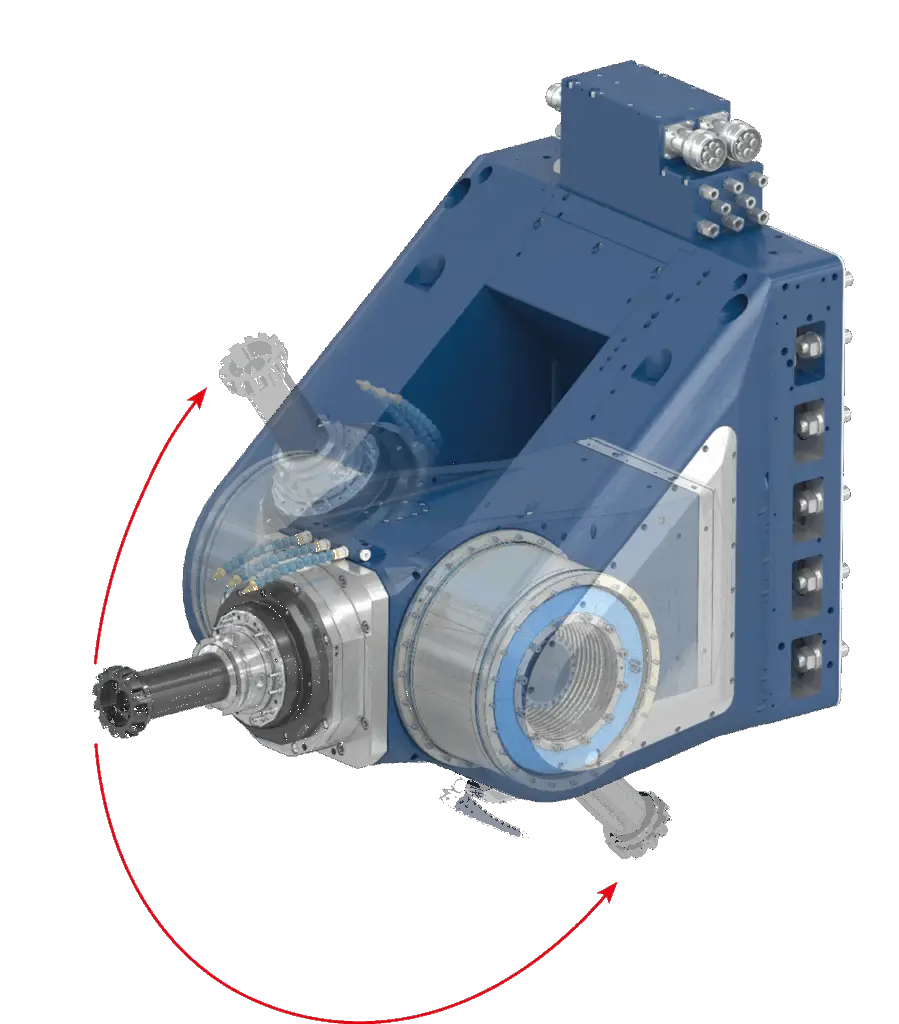

The T-Series powerhead swivels from -135° to +55° with ±2″ position accuracy and 6,500 Nm hydraulic clamping. UHT DirectDrives deliver up to 5,770 Nm, and with the CSG-76-300-S gear spindle (i = 3) up to 1,512 Nm are available directly at the tool.

5,770 Nm Max. Torque (UHT)
-135°/+55° Swivel Angle
6,500 Nm Hydraulic Clamping
±2″ Position Accuracy

Technical Data

CYTEC CYMILL T-Series powerhead for aerospace machining
T-Series powerhead

Swivel Axis

Nom./max. torque2,380 / 4,400 Nm
UHT nom./max. torque3,405 / 5,770 Nm
Clamping torque6,500 Nm
Swivel angle-135° / +55°
Position accuracy±2″

Spindle Options

Max. spindle power76 kW (CSG-76-300-S)
Max. spindle torque1,512 Nm (i = 3)
High-speed optionup to 22,000 rpm
Tool interfacesHSK-A63 / A100 / SK50

General

TypePowerhead, UHT DirectDrives
Measuring systemabsolute
Total weightapprox. 870 kg
Ideal forHigh-strength materials, aerospace
All technical data in the T-Series PDF datasheet

Compatible CYSPEED Motor Spindles

The T-Series is driven by CYSPEED motor spindles from the CYTEC modular kit – up to the CSG-76-300-S gear spindle with 1,512 Nm at the tool. Click a spindle to view its datasheet and performance diagram:

Power (S1/S6)42 / 55 kW
Torque (S1/S6)400 / 525 Nm
Max. speed7,000 rpm
Tool interfaceHSK-A100 / SK50 / CB
Lengthn/a
CS-42-238-S motor spindle performance diagram
Power (S1/S6)50 / 63 kW
Torque (S1/S6)248 / 315 Nm
Max. speed15,000 rpm
Tool interfaceHSK-A100
Lengthn/a
CS-50-238-A / CST-50-238-A motor spindle performance diagram
Power (S1/S6)70 / 90 kW
Torque (S1/S6)85 / 105 Nm
Max. speed22,000 rpm
Tool interfaceHSK-A63
Lengthn/a
CS-70-238-S motor spindle performance diagram
Power (S1/S6)74 / 94 kW
Torque (S1/S6)484 / 620 Nm
Max. speed10,000 rpm
Tool interfaceHSK-A100 / SK50
Lengthn/a
CS-74-260-A motor spindle performance diagram
Power (S1/S6)76 / 95 kW
Torque (S1/S6)400 / 504 Nm (i = 1)
Torque with gear (i = 3)1,200 / 1,512 Nm
Max. speed6,000 rpm
Tool interfaceHSK-A100
CSG-76-300-S gear motor spindle performance diagram
