CYMILL · Fork Milling Heads

M-Series Generation II – A New Era in 5-Axis Machining

PDF Datasheet

The new M-Series marks the beginning of a new era in 5-axis machining. Based on the flagship M21 model, CYTEC has developed a fork-type milling head with the same external dimensions – yet featuring a host of innovative improvements inside. At its heart are specially developed ultra-high-torque (UHT) direct drives, designed not just to meet but to surpass state-of-the-art standards.

With backlash-free, contactless, and maintenance-free drives, FEM-optimized force flow and CFD-optimized thermal symmetry, the M-Series Generation II combines maximum rigidity with superior machining quality – the most torque-powerful fork-type milling head in its class, and a true allrounder from heavy-duty machining of large components to the ultra-precise finishing of freeform geometries.

2,290 Nm Max. Torque C-Axis (UHT)
< 1 sec Full 360° C-Axis Rotation
±1″ Optional Position Accuracy
UHT DirectDrives A- & C-Axis

Technical Data

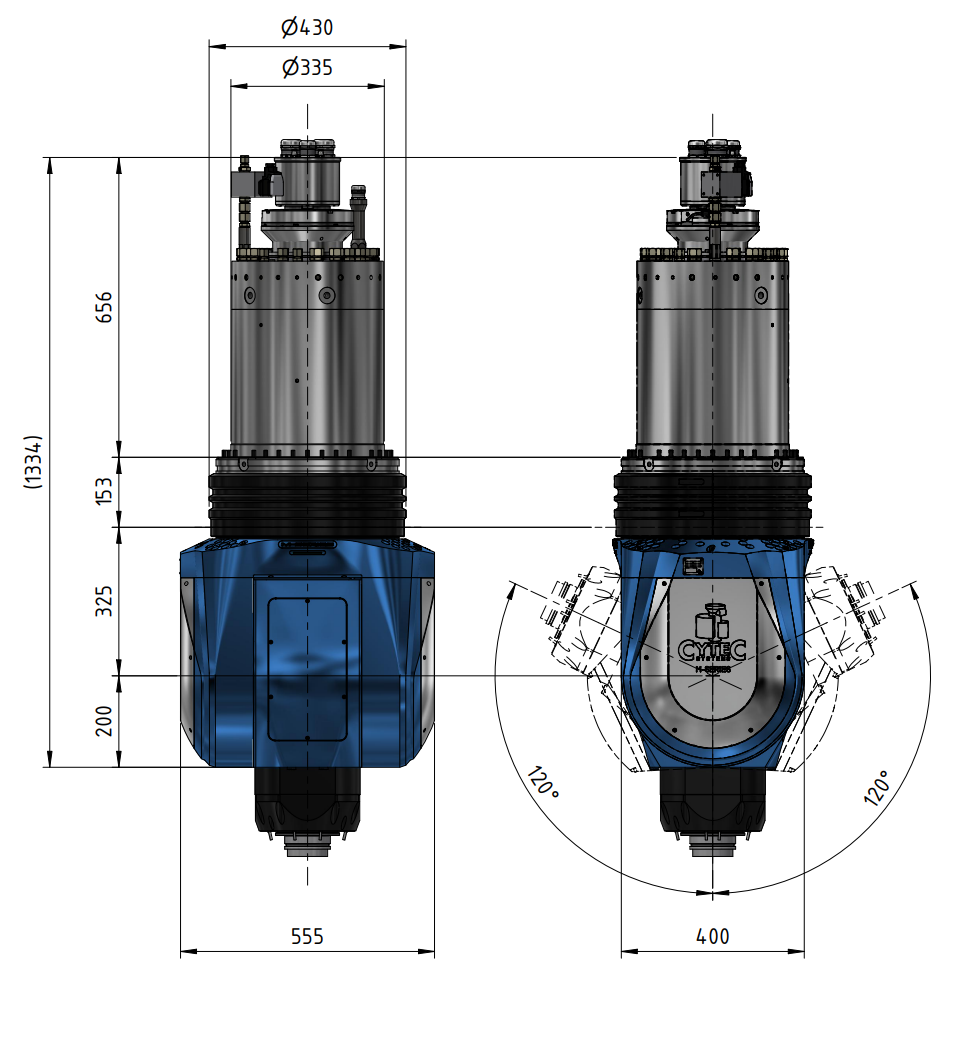

CYTEC CYMILL M-Series Generation II – technical view
M-Series Generation II

C-Axis

Nom./max. torque (UHT)1,430 / 2,290 Nm
Clamping torque7,000 Nm
Swivel range±360° / Infinite
Max. speed93 rpm (360° < 1 sec)
Position accuracy±2″ (opt. ±1″)

A-Axis

Nom./max. torque (UHT)1,100 / 1,940 Nm
Clamping torque9,000 Nm
Swivel range±120°
Max. speed108 rpm
Position accuracy±4″ (opt. ±2″)

General

Type2-axis NC head, Generation II
Based onM21 flagship (same dimensions)
Total weightapprox. 750 kg (A 370 / C 380)
Spindle mountØ 210 mm
Measuring systemabsolute (both axes)
All technical data in the M-Series Generation II PDF datasheet

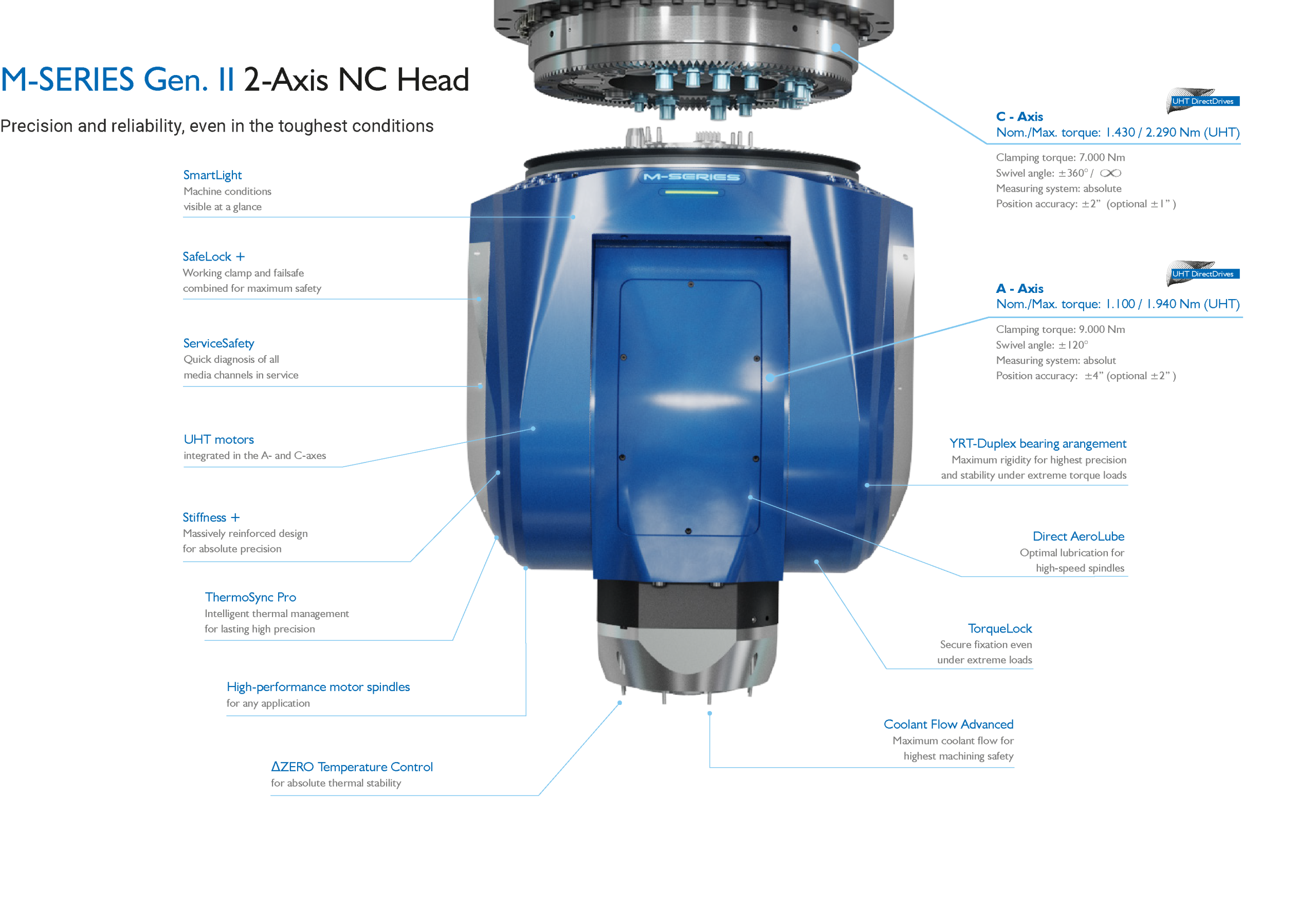

M-Series Generation II – Technology Highlights

CYTEC M-Series Gen II Infinite C-Axis – endless rotation

C-Axis 360° / Infinite

Optional Infinite Turning C-Axis: continuous rotation with seamless transitions, full 360° in under 1 second, system accuracy ±2″.

CYTEC Technology Exchange Interface for automatic head change

Technology Exchange Interface

Fully automatic head changes in under one minute: CYFIT media couplings and CYTRAC clamping with precision Hirth ring integrate multiple technologies on one machine.

CYTEC 5X Precision Housing – foundation of milling head accuracy

5X Precision Housing

Manufactured as a single unit and directly integrated into the bearing: exact axis alignment, A-axis housing and spindle position ground in one setup (2.0 µm).

Delta Zero cooling housing temperature control

ΔZERO Cooling Housing

Full temperature control across the entire speed range, minimized spindle expansion and 30% more cooling performance than standard systems.

SafeLock+ self-locking axis brake

SafeLock+ Axis Brake

Self-locking, safety-oriented axis brake holds position even during pressure loss or emergency stop – dual-channel sensing releases only under safe conditions.

TorqueLock Axis Clamping – Outer-rotor clamping elements deliver up to 300% higher clamping force at the same pressure – energy-efficient clamping with minimal deformation.
UHT DirectDrives – Next-generation synchronous drives with maximized torque constant and minimized losses – backlash-free, contactless, maintenance-free.
ThermoSync Pro – Four independent cooling circuits and a 0.7 m² heat-exchange area keep the head in thermal balance for stable dimensional accuracy.
YRT-Duplex Bearing – Two identical axial/radial YRT bearings mounted symmetrically: maximum tilting stiffness and stability under extreme torque loads.
Direct AeroLube – Oil-air lubrication conditioned directly upstream of the spindle bearings – less friction and heat, longer spindle life, repeatable surface quality.
Coolant Flow Advanced – Larger-than-market coolant cross-sections incl. ECS Plus deliver above-average volumes to the tool – better chip evacuation in deep-hole drilling and heavy roughing.
Stiffness+ Structural Rigidity – FEM-optimized load path from spindle center to machine interface – deformation effectively suppressed even at high torque levels.
SmartLight LED Status – LEDs in the head plate visualize spindle load, maintenance windows and machine states – deviations evident at a glance.
ServiceSafety Diagnostics – Integrated leak-detection channels; all fluid/media channels directly accessible behind the A-axis side cover – checked within seconds.

Motor Spindles – CYSPEED Advanced (Generation II)

Four specially matched CYSPEED Advanced motor spindles cover the full application range of the M-Series Generation II – from high-torque roughing to 30,000 rpm aerospace performance. Click a spindle for its technical data:

Power (S1/S6)50 / 68 kW
Torque (S1, nom. speed)238 Nm – up to 306 Nm (S6 40%)
Nom. / max. speed2,010 / 8,010 rpm
Tool taperHSK-A100
Weight127 kg
Power (S1/S6)72 / 97 kW
Torque (S1, nom. speed)230 Nm – up to 309 Nm (S6 40%)
Nom. / max. speed3,000 / 14,000 rpm
Tool taperHSK-A100
Weight127 kg
Power (S1/S6)70 / 97 kW
Torque (S1, nom. speed)85 Nm – up to 115 Nm (S6 40%)
Nom. / max. speed7,900 / 24,000 rpm
Tool taperHSK-A63 / HSK-A80
Weight115 kg
Power (S1/S6)150 / 202 kW
Torque (S1, nom. speed)83 Nm – up to 112 Nm (S6 40%)
Nom. / max. speed17,300 / 30,000 rpm
Tool taperHSK-A63 / HSK-A80
Weight115 kg
CYMILL · Fork Milling Heads

M-Series – The Proven 2-Axis Powerhead

PDF Datasheet

The M-Series fork head is a powerful, high-dynamic 2-axis solution tailored for demanding machining – from heavy roughing to precision finishing – across milling, turning, and grinding tasks. Its standout attributes include high torque, precision direct-drive motors, and a broad range of spindle and accessory options (cooling, extraction, automatic exchange). Ideal for large and complex workpieces in sectors like aerospace, automotive, and heavy machinery.

1,960 Nm Max. Torque C-Axis (2,290 UHT)
4,000 Nm Hydraulic Clamping A/C
±360°/cont. C-Axis Swivel Range
950 kg Total Weight approx.
CYTEC CYMILL M-Series fork milling head – standard series

C-Axis

Nom./max. torque1,020 / 1,960 Nm
UHT nom./max. torque1,430 / 2,290 Nm
Clamping torque4,000 Nm
Swivel range±360° / cont.
Position accuracy±2″

A-Axis

Nom./max. torque840 / 1,340 Nm
UHT nom./max. torque1,100 / 1,940 Nm
Clamping torque4,000 Nm
Swivel range±110°
Position accuracy±4″

General

Total weightapprox. 950 kg
Measuring systemabsolute
DrivesUHT DirectDrives
AccessoryDust & chip extraction

CYSPEED Advantages

  • CYTEC hydromechanical tool clamping system for failsafe machining.
  • Hybrid bearing combination for highest performance, rigidity, accuracy and spindle lifetime.
  • Delta-Zero temperature control for homogeneous temperature.
  • Most compact design.
  • Unique grasping safety of clamping system with 2.5 mm stroke.
  • Rotary joint in standard configuration.

Compatible CYSPEED Motor Spindles

The M-Series is driven by CYSPEED motor spindles from the CYTEC modular kit – including the CYSPEED SELECT spindles produced to stock for rapid delivery. Click a spindle to view its datasheet and performance diagram:

Power (S1/S6)34 / 42 kW
Torque (S1/S6)160 / 200 Nm
Nom. speed2,000 rpm
Max. speed12,000 rpm
Tool interfaceHSK-A100
CS-34-180-S motor spindle performance diagram
Power (S1/S6)40 / 51 kW
Torque (S1/S6)67 / 85 Nm
Nom. speed5,700 rpm
Max. speed24,000 rpm
Tool interfaceHSK-A63
CS-40-180-S motor spindle performance diagram
Power (S1/S6)42 / 53 kW
Torque (S1/S6)201 / 253 Nm
Nom. speed2,000 rpm
Max. speed12,000 rpm
Tool interfaceHSK-A100
CS-42-180-S / CST-42-180-S motor spindle performance diagram
Power (S1/S6)60 / 80 kW
Torque (S1/S6)85 / 105 Nm
Nom. speed7,000 rpm
Max. speed22,000 rpm
Tool interfaceHSK-A63
CS-60-180-S motor spindle performance diagram
Power (S1/S6)21 / 27 kW
Torque (S1/S6)100 / 130 Nm
Nom. speed2,000 rpm
Max. speed18,000 rpm
Tool interfaceHSK-A63
CS-21-180-A Select motor spindle performance diagram
Power (S1/S6)25 / 42 kW
Torque (S1/S6)87 / 145 Nm
Nom. speed2,000 rpm
Max. speed20,000 rpm
Tool interfaceHSK-A63
CS-25-180-A Select motor spindle performance diagram
Power (S1/S6)28 / 35 kW
Torque (S1/S6)90 / 113 Nm
Nom. speed2,000 rpm
Max. speed20,000 rpm
Tool interfaceHSK-A63
CS-28-180-A Select motor spindle performance diagram
